Print-Quality Troubleshooting
Vertical White Lines
There are faded or completely non-printed lines along the page in the process
direction. Possible causes include dust or debris blocking the path between the
Laser Unit and Print Cartridge, or a build up of debris on the OPC drum cleaning
blade.
Initial Actions
•Clean the Laser Unit window.
• Ensure there is no dust or debris on the Print Cartridge or Fuser components.
Troubleshooting Reference Table

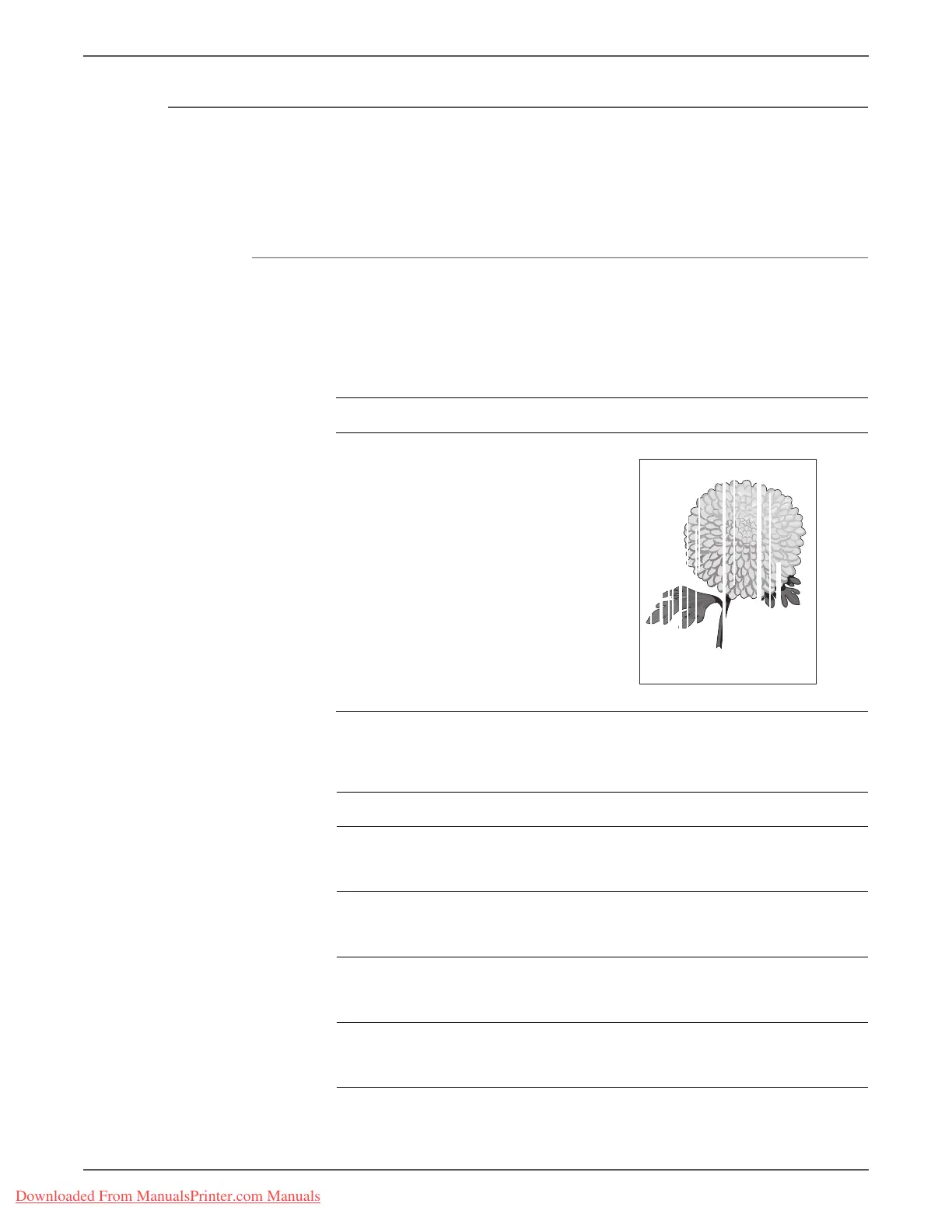

Applicable Parts Example Print
■ Print Cartridge, PL1.0.12
■ Transfer Roller, PL1.0.8
■ Laser Unit, PL6.0.79
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the Print Cartridge life usage.
Is the Print Cartridge empty?
Replace the
Print Cartridge
(page 8-6).
Go to step 2.
2 Check the Laser Unit window.
Is there contamination on the Laser
Unit window?
Clean the Laser
Unit window.
Go to step 3.
3 Check the Print Cartridge for debris.
Is there any debris on the OPC
drum?
Clean the
drum.
Go to step 4.
4 Check the OPC Drum on the Print
Cartridge for damage.
Is the OPC Drum damaged?
Replace the
Print Cartridge
(page 8-6).
Go to step 5.
Vertical Blank Lines
Downloaded From ManualsPrinter.com Manuals

Xerox Phaser 3140 Specifications

General

Color	No
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	80 sheets
Maximum duty cycle	10000 pages per month
Page description languages	GDI
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Mac compatibility	Yes
Custom media sizes	76 x 127 - 216 x 356 mm
Compatible operating systems	Windows 2000/XP/2003, Vista, Mac OS
Power consumption (standby)	60 W
Power consumption (printing)	360 W
Display	-
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	360 x 389 x 230 mm
