Phaser 3140/3155/3160 Printer Service Manual 8-5
Service Parts Disassembly
Fastener Types
The following table lists the primary types of Posi-Drive screws used to assemble
the printer. The procedures provide dimensional specifications for screws being
removed.
Caution
Use care when installing self-tapping screws in plastic. To properly start the
screw in plastic, turn the screw counter-clockwise in the hole until you feel the
screw engage the threads, then tighten as usual. Always use the correct type
and size screw and properly align the screw to prevent damaging the tapped
holes. Do not use excessive force to remove or install either a screw or a printer
part.

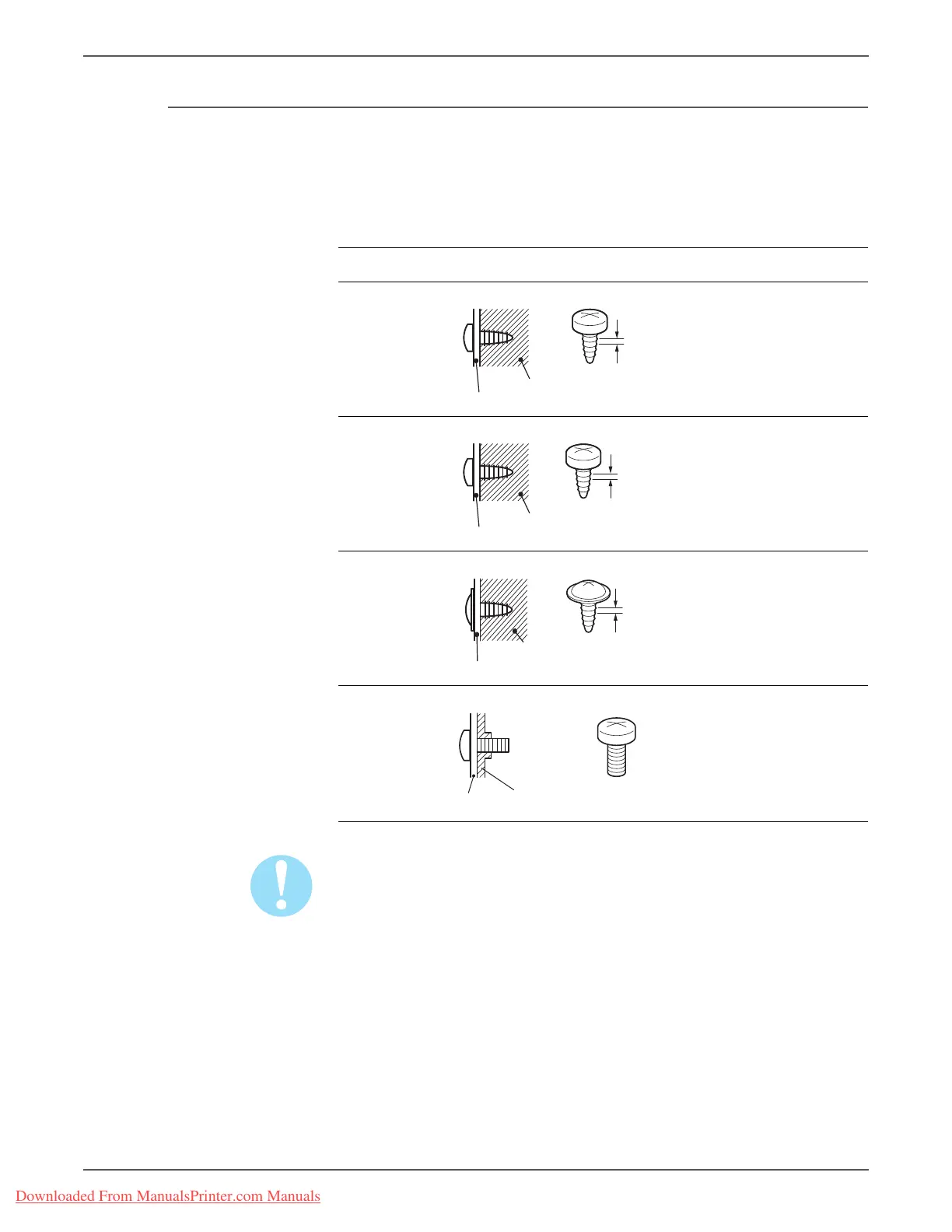

Posi-Drive Screw Types used in the Printer
Type Application Shape Characteristics
Self-tapping,
plastic, black
1. Black colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin.
Self-tapping,
plastic, silver
1. Silver colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin.
Self-tapping,
plastic with
flange, silver
1. Silver colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin. Screw has
a flange.
Sheet Metal,
silver
1. Silver colored.
2. Diameter is uniform.
Parts etc.
Plastic
Coarse
Parts etc.
Plastic
Coarse
Parts etc.
Plastic
Coarse
Parts etc.
Sheet
Metal
Downloaded From ManualsPrinter.com Manuals

Xerox Phaser 3140 Specifications

General

Color	No
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	80 sheets
Maximum duty cycle	10000 pages per month
Page description languages	GDI
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Mac compatibility	Yes
Custom media sizes	76 x 127 - 216 x 356 mm
Compatible operating systems	Windows 2000/XP/2003, Vista, Mac OS
Power consumption (standby)	60 W
Power consumption (printing)	360 W
Display	-
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	360 x 389 x 230 mm
