Service Parts Disassembly

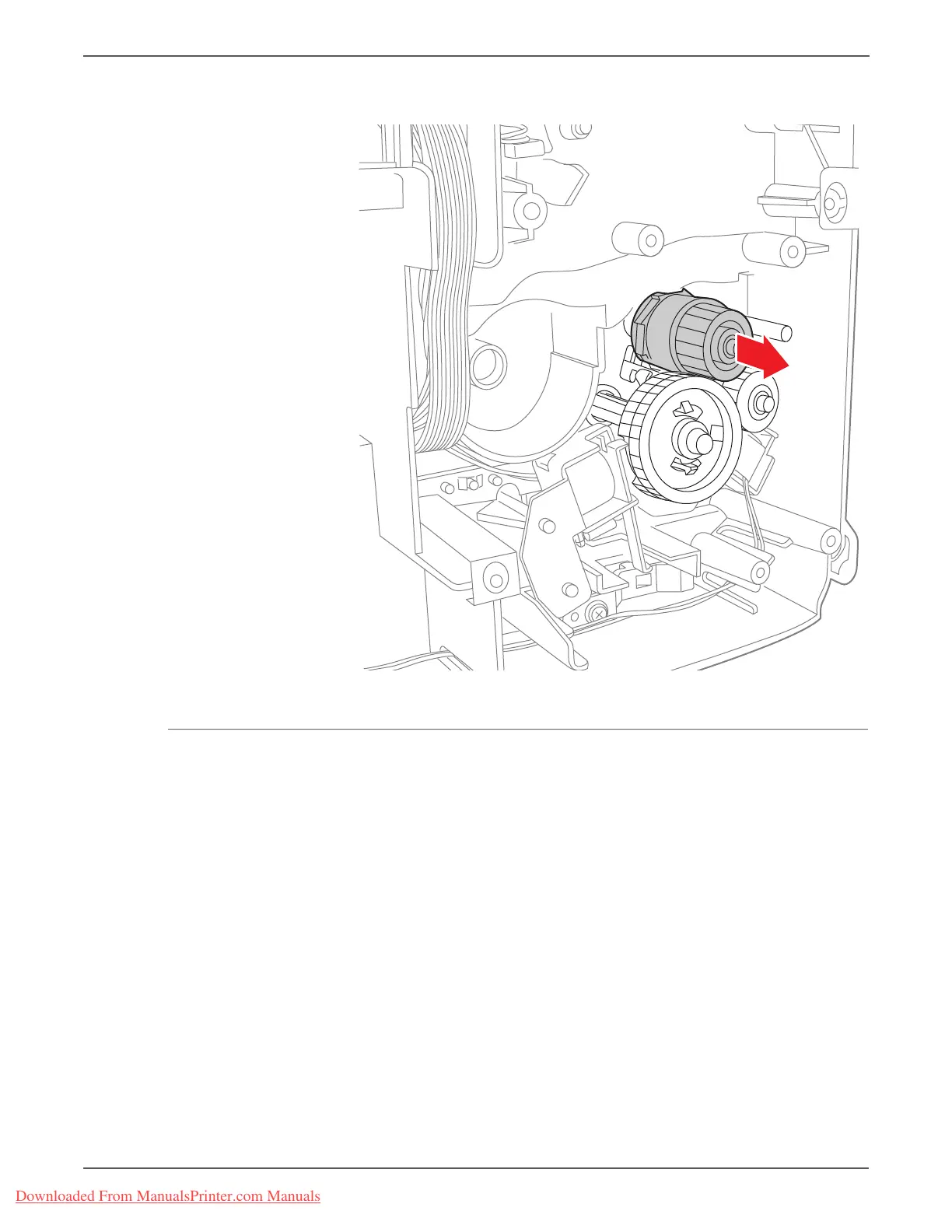

3. Remove the Idler Gear (black), and then pull the Clutch Assembly out.
Feed Roller
PL6.0.42
1. Remove the front cover (page 8-23).
2. Remove the Drive Assembly (page 8-35).
s3160-029
