Theory of Operation
Drive Assembly
The Drive Assembly receives power from the Controller Board. The Drive Assembly
consists of the main motor and gear set mounted to a support plate.
• Motor: 24V DC
• Driving Frequency: 2200 rpm

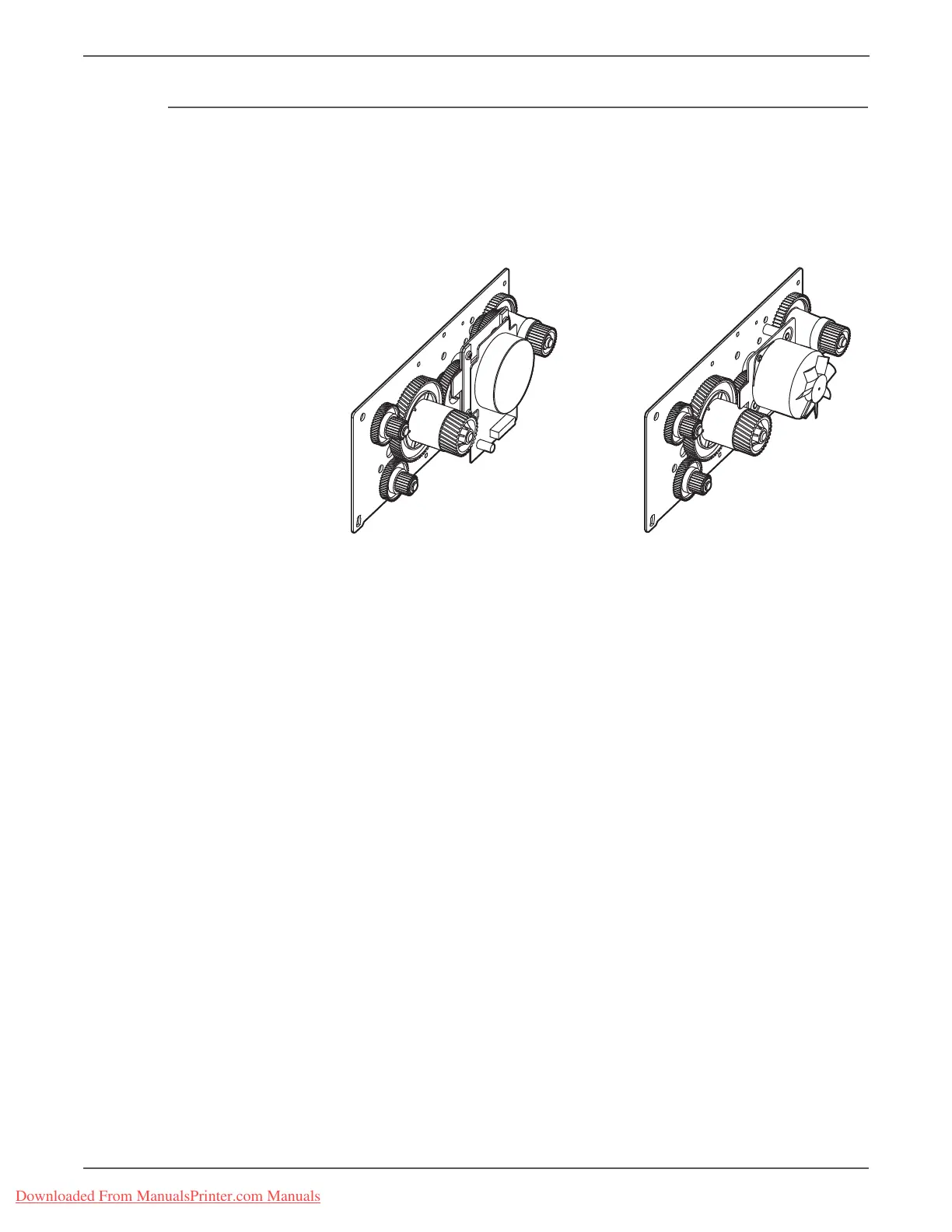

s3160-084
3155 & 3160 3140
