Xerox Phaser 3140 Service Manual

Phaser 3140/3155/3160 Printer Service Manual 2-7
Theory of Operation

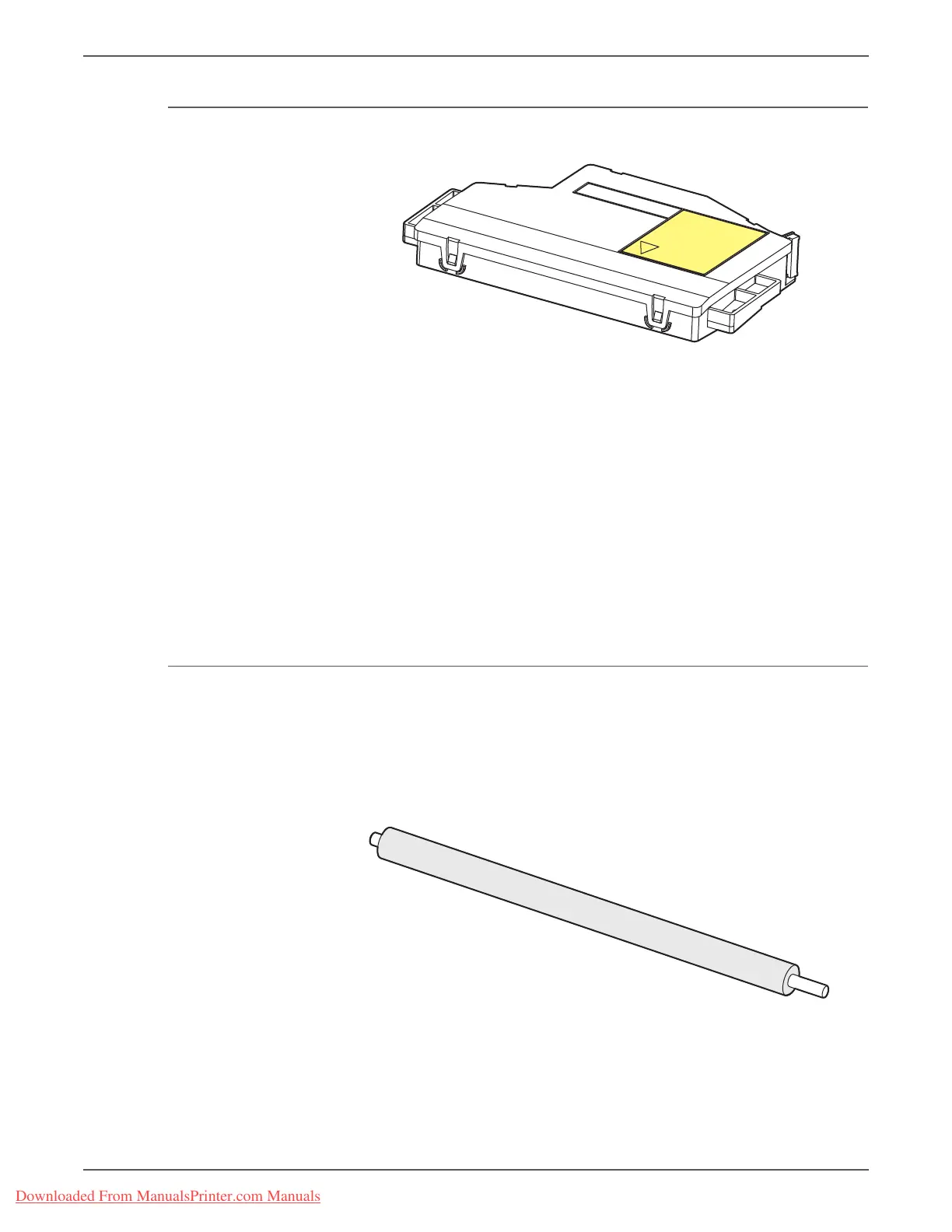

Laser Unit
The Laser Unit is the core part of the Phaser 3140/3155/3160 and is controlled by
the video controller circuitry of the Controller Board. The Laser Unit converts video
data received from the Controller Board into an electrostatic latent image on the
surface of the OPC drum. This is achieved by controlling the laser beam and
exposing the surface of the OPC drum to the laser light. A rotating polygon mirror
reflects the laser light onto the OPC drum. Each face of the mirror produces one
scan line. The OPC drum rotates at the same speed as the paper feeding speed. As
the OPC drum turns, the laser scans creating the full page image.
The Horizontal Sync (HSYNC) signal is created when the laser beam from the Laser
Unit reaches the end of the polygon mirror and the signal is sent to the Controller
Board. The controller detects the HSYNC signal and adjusts the vertical line of the
image on paper. After the HYSNC signal is detected, the image data is sent to the
Laser Unit to adjust the left margin on the paper.
Transfer Roller
The Transfer Roller applies a positive charge to the rear surface of the paper. The
negatively charged toner image on the Printer Cartridge OPC drum is attracted to
the positive charge on the rear surface of the paper, causing the image to be
transferred from the surface of the drum onto the paper. For more information, see
“Print Cartridge” on page 2-8.
s3160-087
s3160-083
Downloaded From ManualsPrinter.com Manuals

Xerox Phaser 3140 Specifications

General

Color	No
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	80 sheets
Maximum duty cycle	10000 pages per month
Page description languages	GDI
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Mac compatibility	Yes
Custom media sizes	76 x 127 - 216 x 356 mm
Compatible operating systems	Windows 2000/XP/2003, Vista, Mac OS
Power consumption (standby)	60 W
Power consumption (printing)	360 W
Display	-
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	360 x 389 x 230 mm
