8-44 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly
Manual Feed Actuator
PL6.0.58
1. Remove the Print Cartridge (page 8-6).
2. Remove the Paper Tray (page 8-7).
3. Turn the printer over.

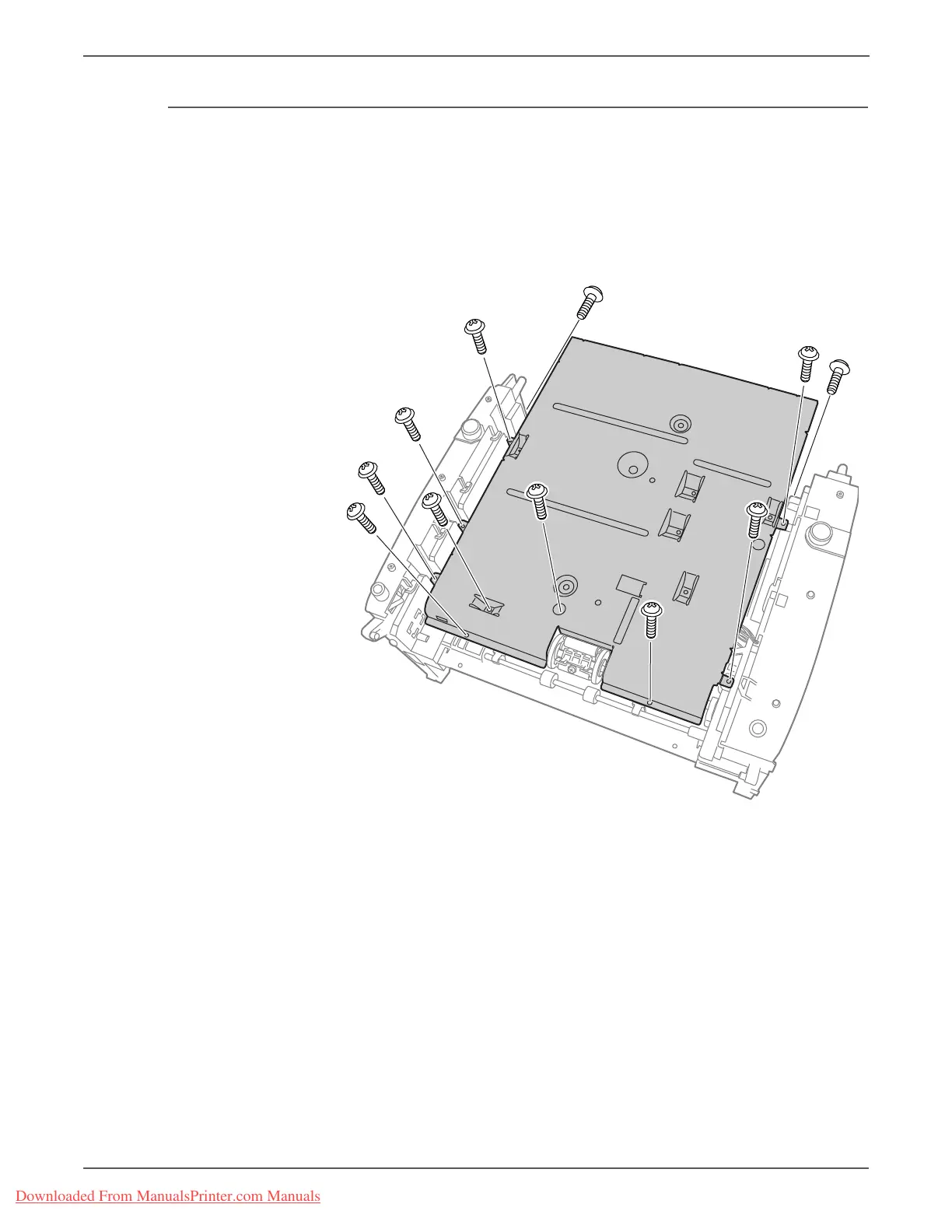

4. Remove 11 screws (10 mm, silver, tap) on the Engine Shield assembly.
5. Lift the Engine Shield Assembly and disconnect all cables on the boards and
remove the assembly.
6. Remove the Drive Assembly (page 8-35).
