Phaser 3140/3155/3160 Printer Service Manual 8-51
Service Parts Disassembly
Electrical
Control Panel
PL2.0.10

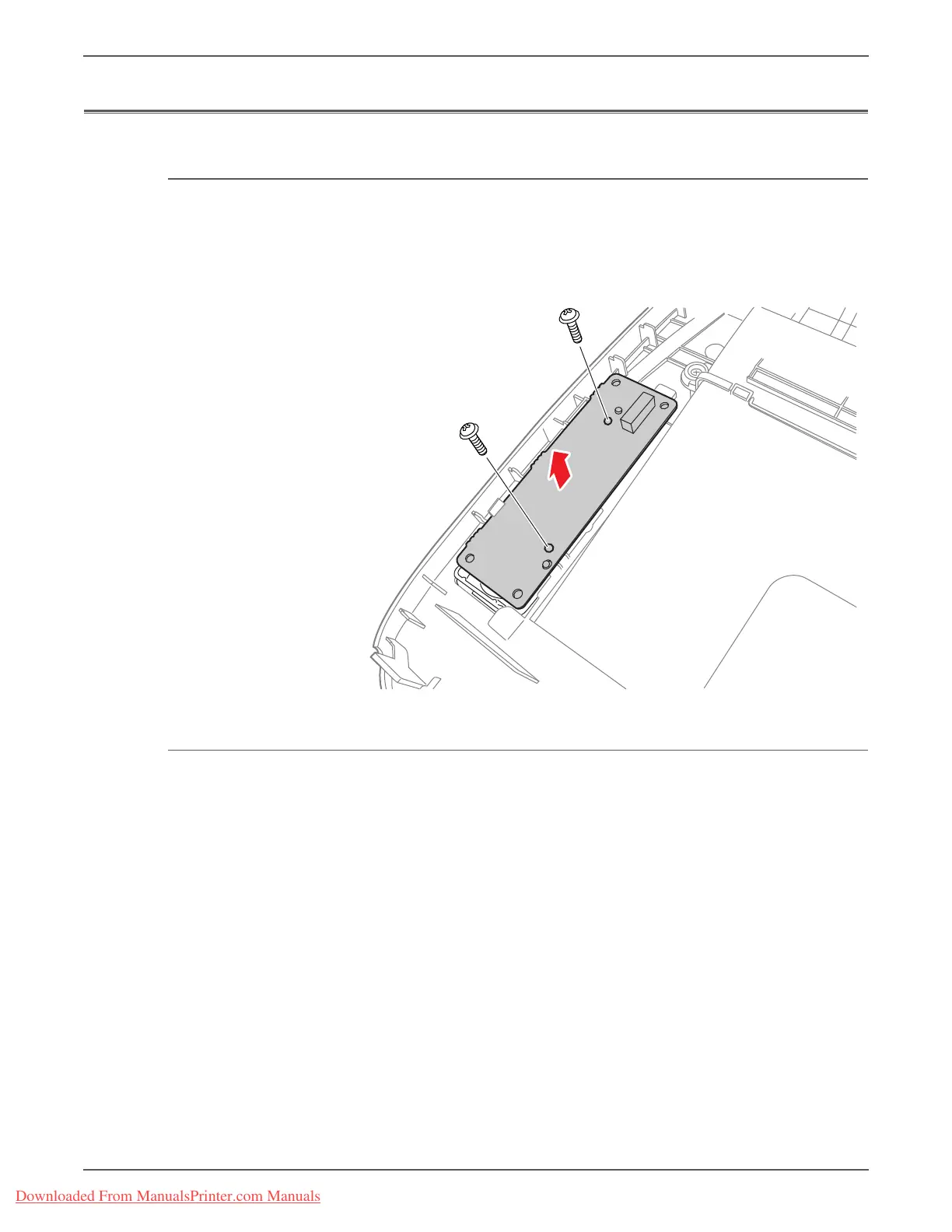

1. Remove the Top Cover (page 8-23).
2. Remove 2 screws (10 mm, silver, tap), and then remove the Control Panel.
Controller Board
PL1.0.2
1. Remove the Print Cartridge (page 8-6).
2. Remove the Tray (page 8-7).
3. Remove the Rear Cover (page 8-26).
