Xerox Phaser 3140 Service Manual

2-2 Phaser 3140/3155/3160 Printer Service Manual
Theory of Operation
Operational Overview
The Phaser 3140/3155/3160 is a monochrome printer that has a single-pass laser
design architecture, which offers mono print speed up to 24 pages per minute
(ppm), and resolution up to 1200 x 1200 dots-per-inch (dpi) image quality. The
printer provides a USB interface for all models, and the 3160N supports 10/100
Base-TX ethernet.
System Overview

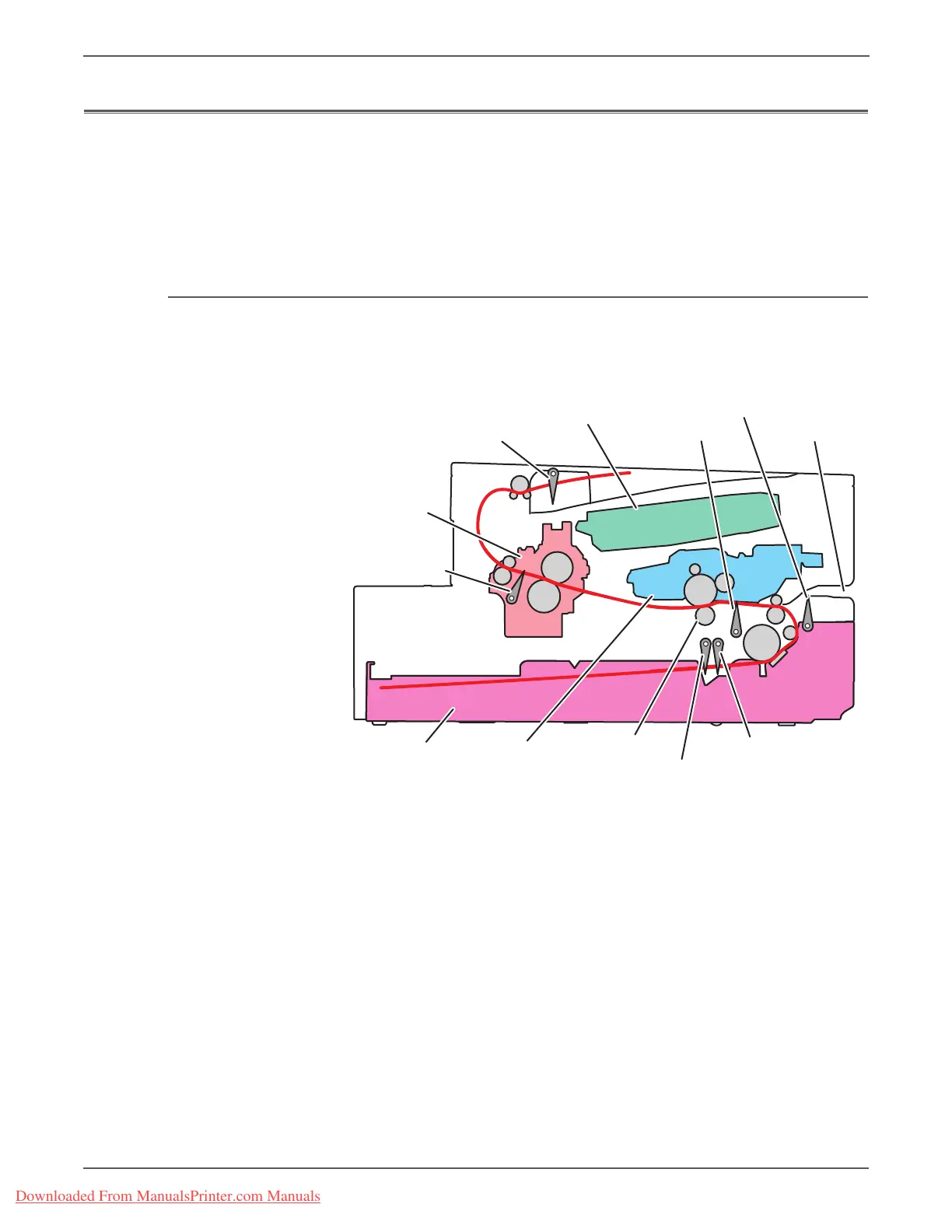

The location of the printer’s primary functional components is shown in the
following illustration.
s3160-065
Output Bin Full Sensor
Paper Exit Sensor
Paper Empty Sensor
Tray
Paper Feed Sensor
Cover Open Sensor
Manual Feed Sensor
Transfer Roller
Manual Feed Slot
Print Cartridge
Laser Unit
Fuser
Downloaded From ManualsPrinter.com Manuals

Xerox Phaser 3140 Specifications

General

Color	No
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	80 sheets
Maximum duty cycle	10000 pages per month
Page description languages	GDI
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Mac compatibility	Yes
Custom media sizes	76 x 127 - 216 x 356 mm
Compatible operating systems	Windows 2000/XP/2003, Vista, Mac OS
Power consumption (standby)	60 W
Power consumption (printing)	360 W
Display	-
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	360 x 389 x 230 mm
