5-30 Phaser 3140/3155/3160 Printer Service Manual
Print-Quality Troubleshooting
Incomplete Fusing
The toner is not completely fused to the paper and easily rubs or flakes off.
Initial Actions
• Verify the correct media type is set.
Troubleshooting Reference Table

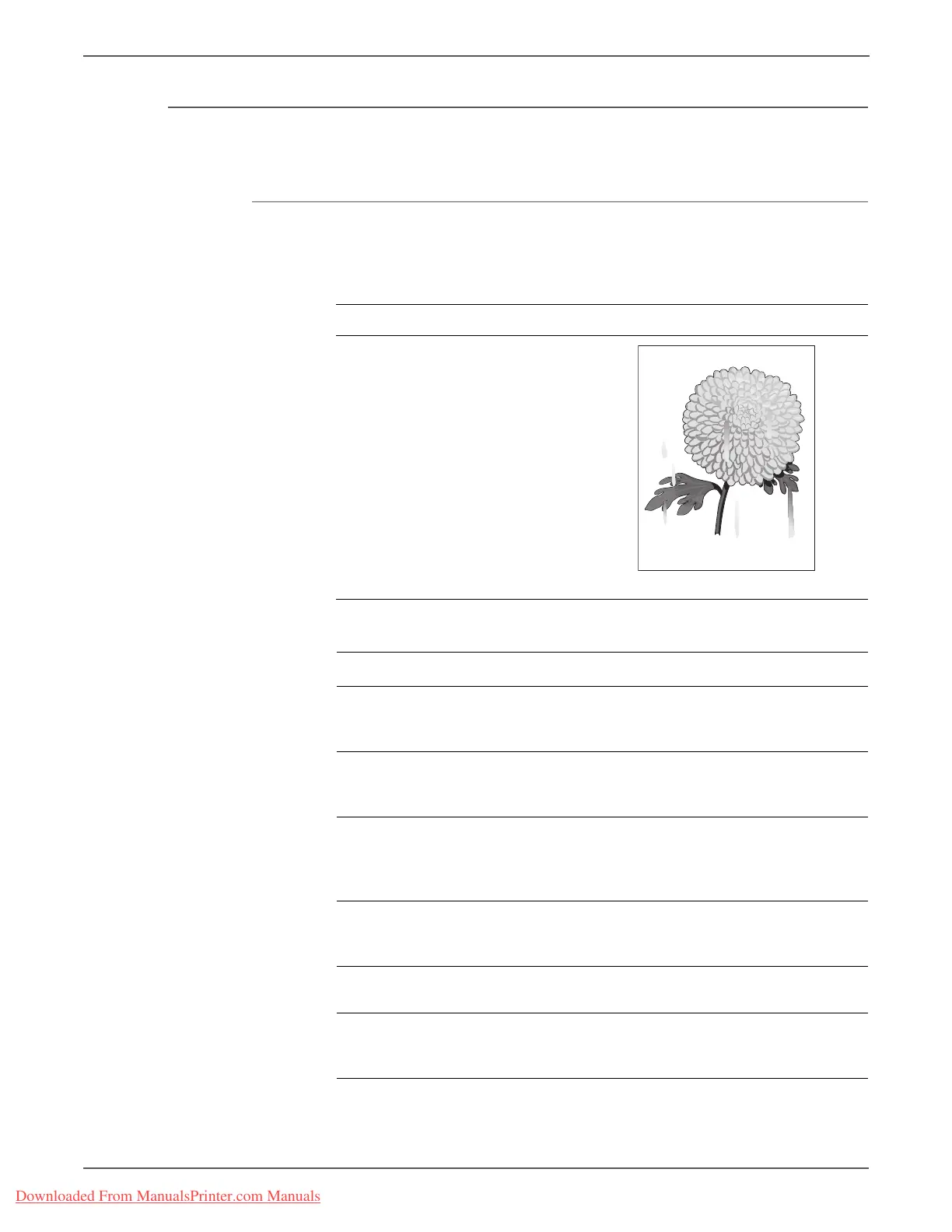

Applicable Parts Example Prints
■ Fuser, PL9.0.0
■ Print Cartridge, PL1.0.12
■ Power Supply, PL1.0.1
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Print the Print Cleaning Page
(page 4-2) several times.
Does the problem persist?
Go to Step 2. Complete.
2 Check the media.
Is the media dry, a recommended
type, and loaded correctly?
Go to step 3. Replace the
media.
3 Check the media settings.
Does the loaded media type/size
match the setting displayed in
Printing Preferences?
Go to Step 4. Adjust the
setting to a
heavier type.
4 Check the Print Cartridge.
Is the Print Cartridge damaged?
Go to step 5. Replace the Print
Cartridge
(page 8-6).
5 Reseat the Fuser.
Does the problem persist?
Go to step 6. Complete.
6 Replace the Fuser (page 8-11).
Does the problem persist?
Replace the
Power Supply
(page 8-54).
Complete.
Smudges or Smears
Downloaded From ManualsPrinter.com Manuals

Xerox Phaser 3140 Specifications

General

Color	No
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	80 sheets
Maximum duty cycle	10000 pages per month
Page description languages	GDI
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Mac compatibility	Yes
Custom media sizes	76 x 127 - 216 x 356 mm
Compatible operating systems	Windows 2000/XP/2003, Vista, Mac OS
Power consumption (standby)	60 W
Power consumption (printing)	360 W
Display	-
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	360 x 389 x 230 mm
