Phaser 3140/3155/3160 Printer Service Manual 8-45
Service Parts Disassembly

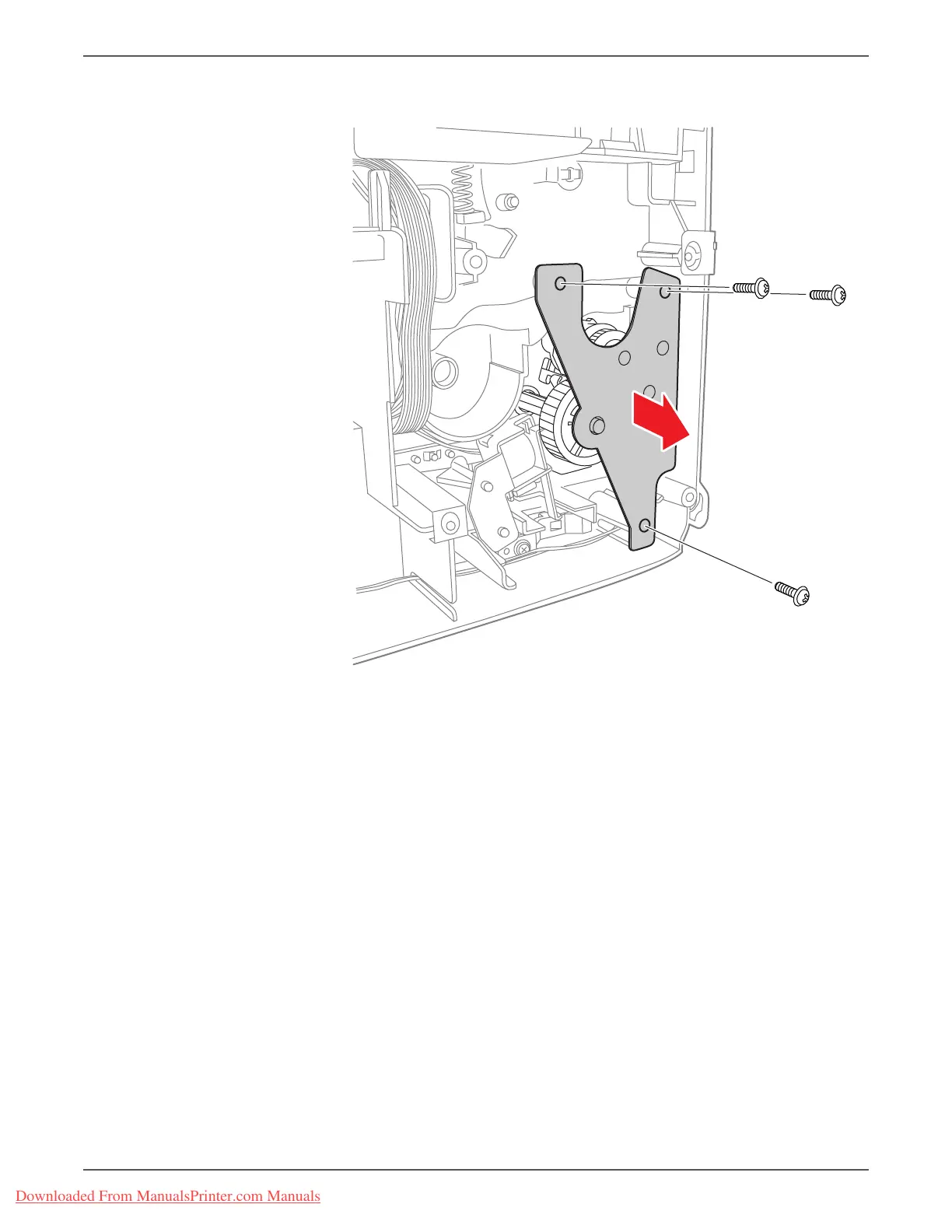

7. Remove 3 screws (10 mm, silver, tap) and remove the Feed Bracket.
8. Remove the Feed Roller (page 8-38).
9. Turn the printer upside down with the rear of the printer facing you.
