Xerox Phaser 3140 Service Manual

Phaser 3140/3155/3160 Printer Service Manual 2-5
Theory of Operation

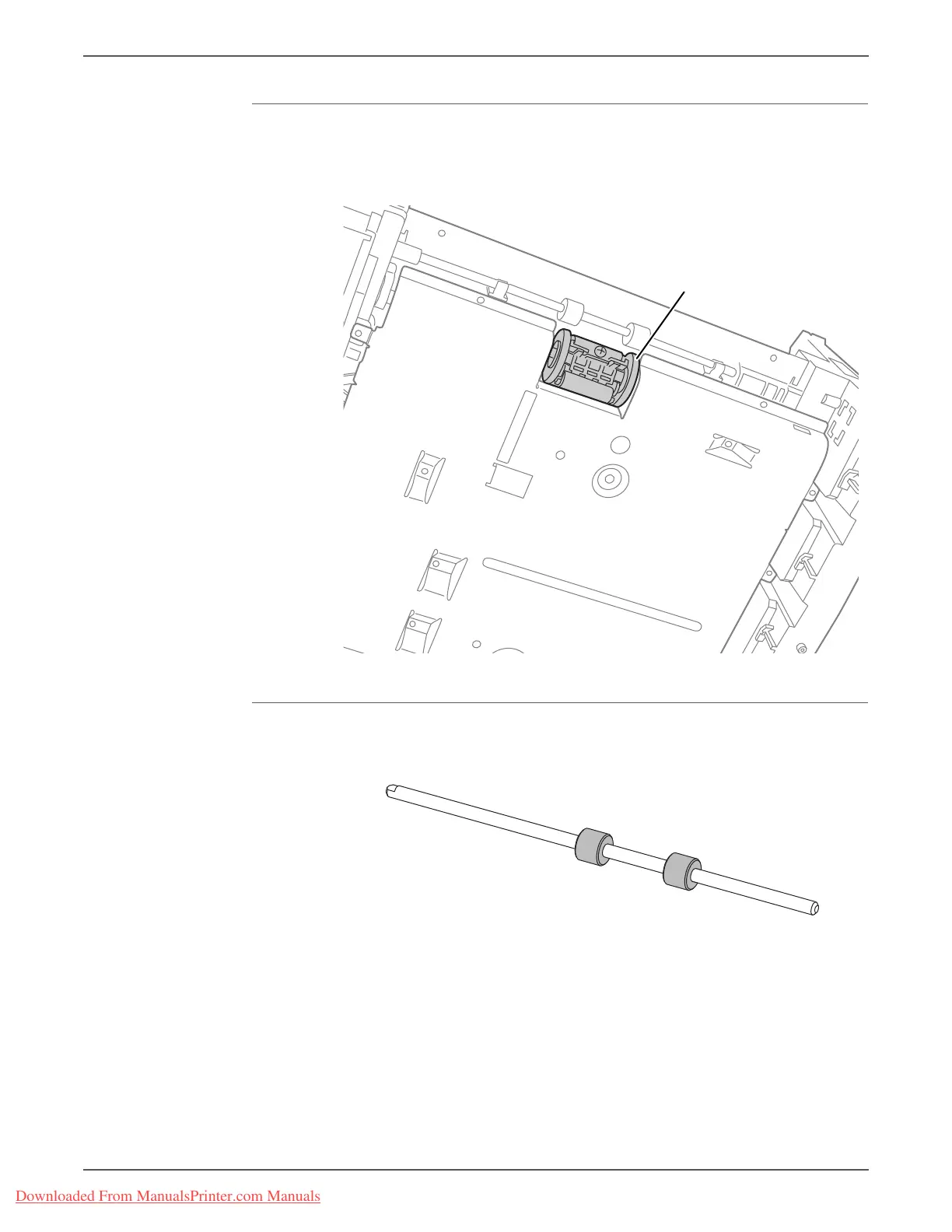

Pick Up Roller
The Pick Up Roller is used to pick up and feed paper into the printer and remove
static charge on the paper. The Pick Up Roller is driven by the Pick Up Solenoid.
Feed Roller (Registration)
The Feed Roller controls paper registration and guides the paper into the printer.
s3160-090
Pick Up Roller
s3160-089
Downloaded From ManualsPrinter.com Manuals

Xerox Phaser 3140 Specifications

General

Color	No
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	80 sheets
Maximum duty cycle	10000 pages per month
Page description languages	GDI
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Mac compatibility	Yes
Custom media sizes	76 x 127 - 216 x 356 mm
Compatible operating systems	Windows 2000/XP/2003, Vista, Mac OS
Power consumption (standby)	60 W
Power consumption (printing)	360 W
Display	-
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	360 x 389 x 230 mm
