8-60 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly

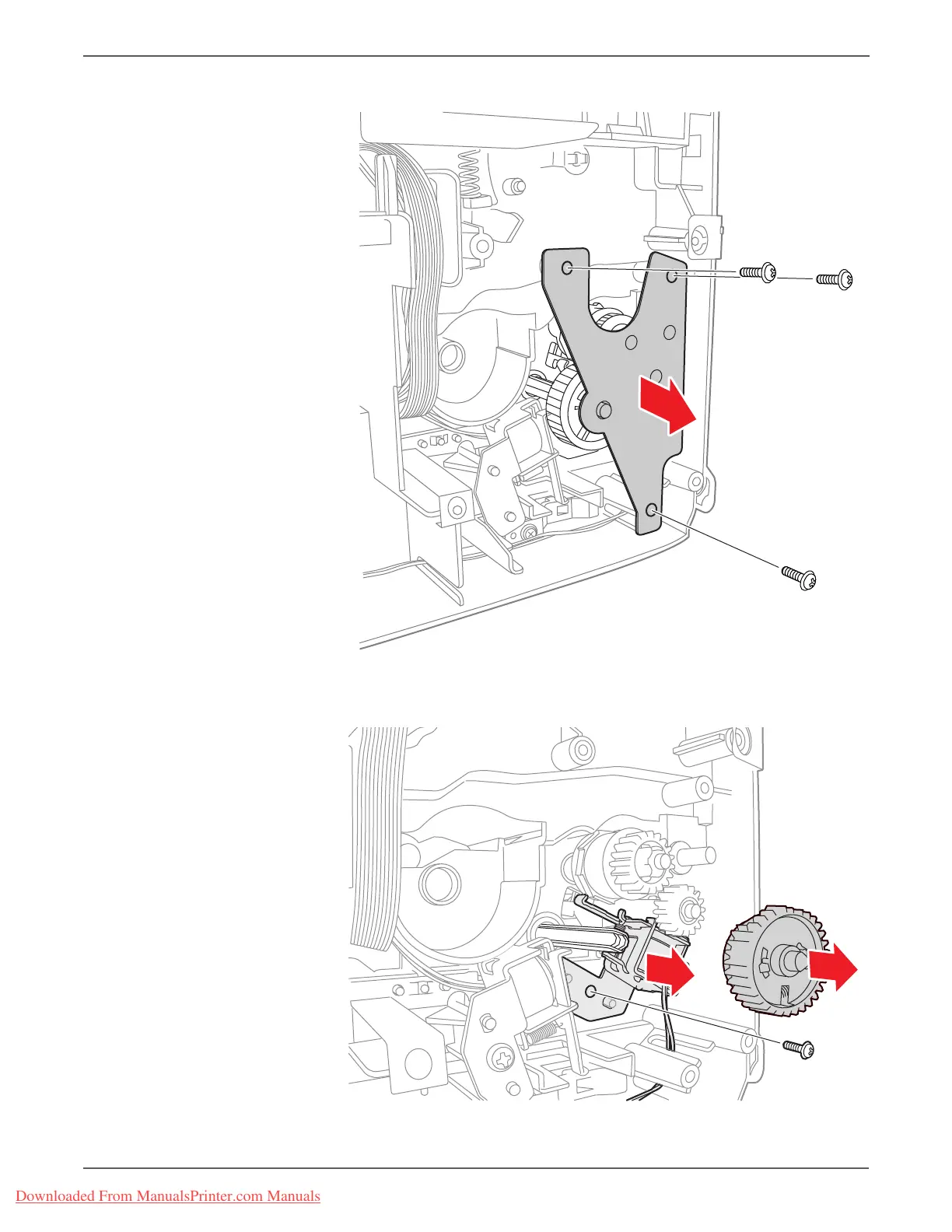

3. Remove 3 screws (10 mm, silver, tap) and remove the Feed Bracket.
4. Remove the Pick Up Gear Assembly.
Remove 1 screw (10 mm, silver, tap) that secures the Manual Feed Solenoid.
5. Remove the Manual Feed Solenoid.
s3160-028
s3160-062
