8-62 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly

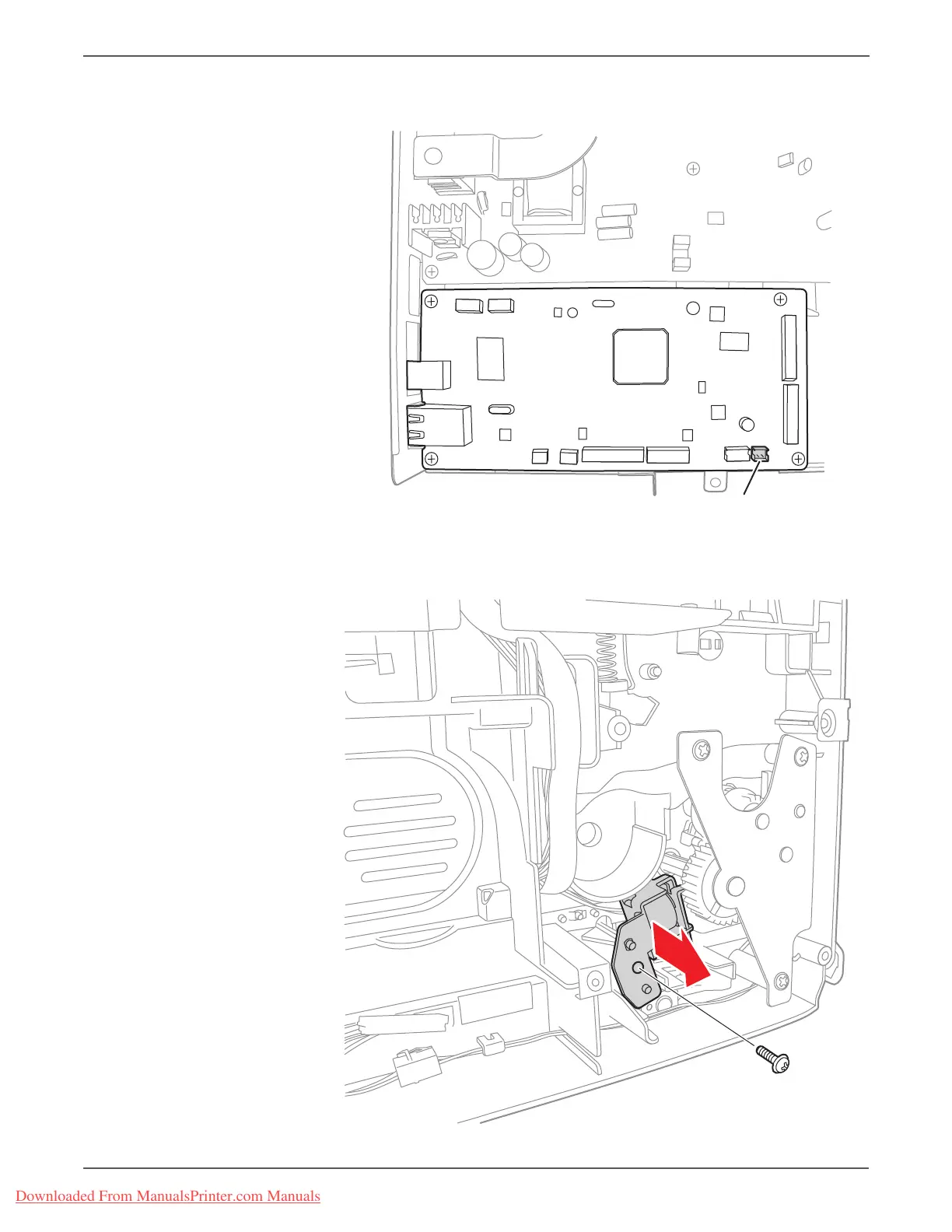

6. Lift the Engine Shield Assembly and disconnect CN7 (CN6 on the 3160) on the
Controller Board.
7. Remove the Drive Assembly (page 8-35).
8. Remove 1 screw (10 mm, silver, tap) that secures the Pick Up Solenoid.
s3160-131
CN6
s3160-061
