Phaser 3300MFP Service Manual 8-15
Service Parts Disassembly
11. Remove four E-clips, the left Jam Link Lever, the right Jam Link Lever, and
two Jam Link Holders, as shown here.
12. Carefully lift the Pressure Roller out of the Fuser frame. Be careful not to
drop the pressure bearings, which are loose on the frame.
Fuser Reassembly Notes
■ When reinstalling the Jam Link Holders, grasp the assembly so that you
can compress the pressure roller springs. Wrap the assembly in a sheet
of paper to avoid contaminating the roller surface.
■ When reinstalling the Heat Roller, be sure the bushings are installed
correctly. Press on the Jam Link Levers as needed to take the pressure of
the Pressure Roller off the Heat Roller.
■ When reinstalling the Fuser Cover, make sure the stripper fingers in the
cover are in the “down” position. Install the cover very carefully to prevent
the stripper fingers from gouging the Heat Roller surface, or from pivoting
up in the wrong position.
■ When reinstalling the halogen lamp, avoid touching the glass with bare
hands. Handle the lamp by the metal terminals at the ends.

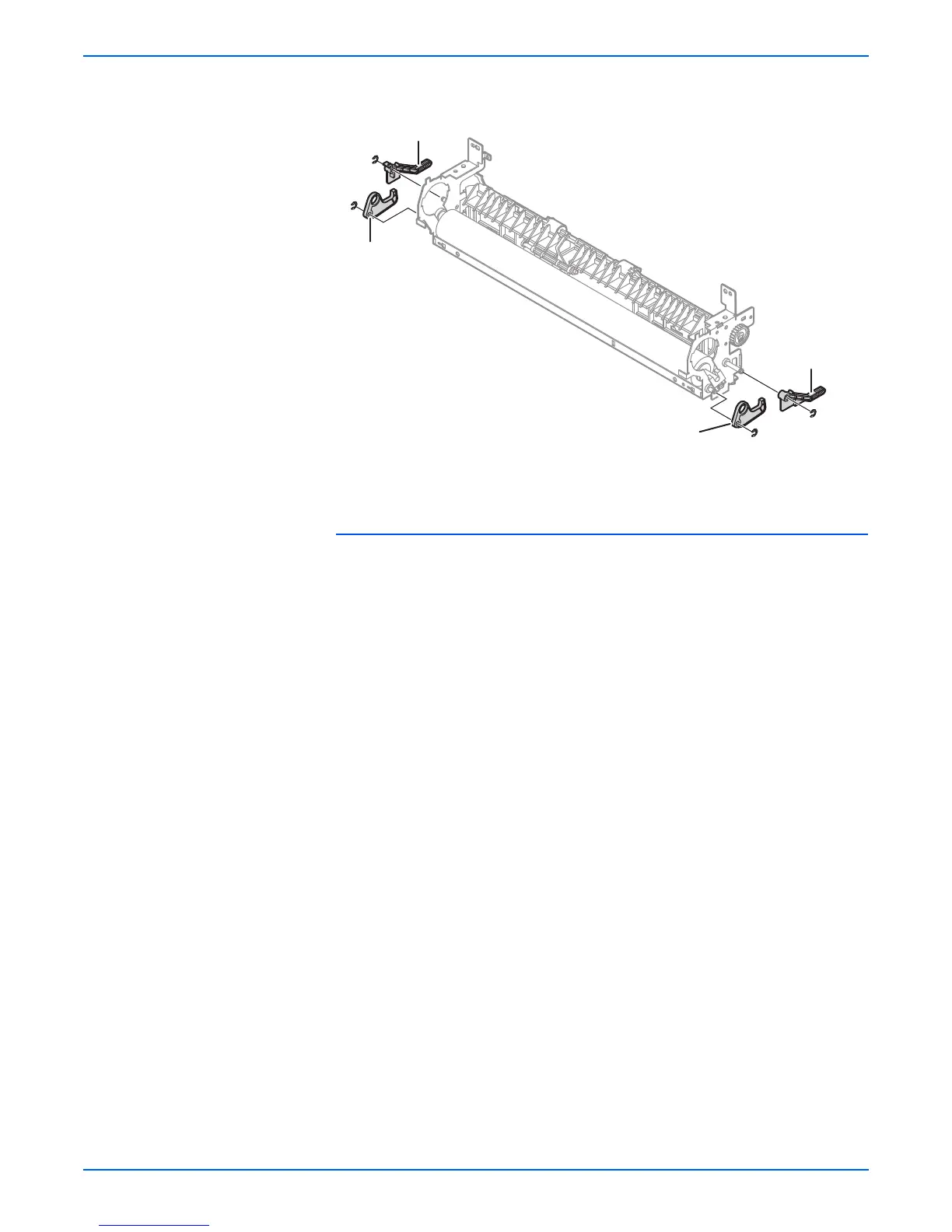

s3300mfp-025
Jam Holder
Jam Link Lever
Jam Holder
Jam Link Lever
