Phaser 3300MFP Service Manual 8-31
Service Parts Disassembly

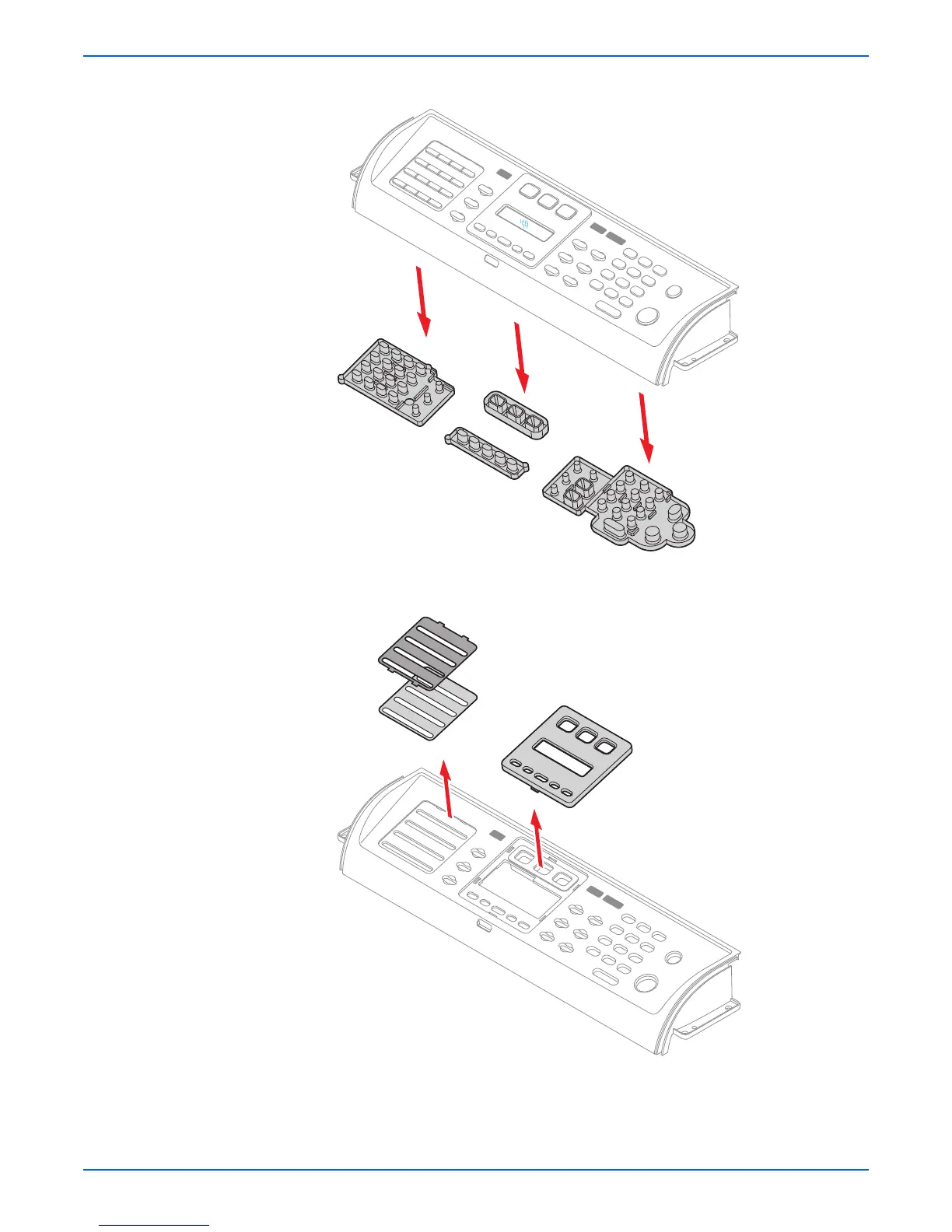

5. Remove the Contact Rubbers from the Control Panel Cover.
6. Remove the Lens and Keys from the Control Panel Cover.
s3300mfp-036
s3300mfp-037
NEVI Cover
Label
Sheet
