8-48 Phaser 3300MFP Service Manual
Service Parts Disassembly

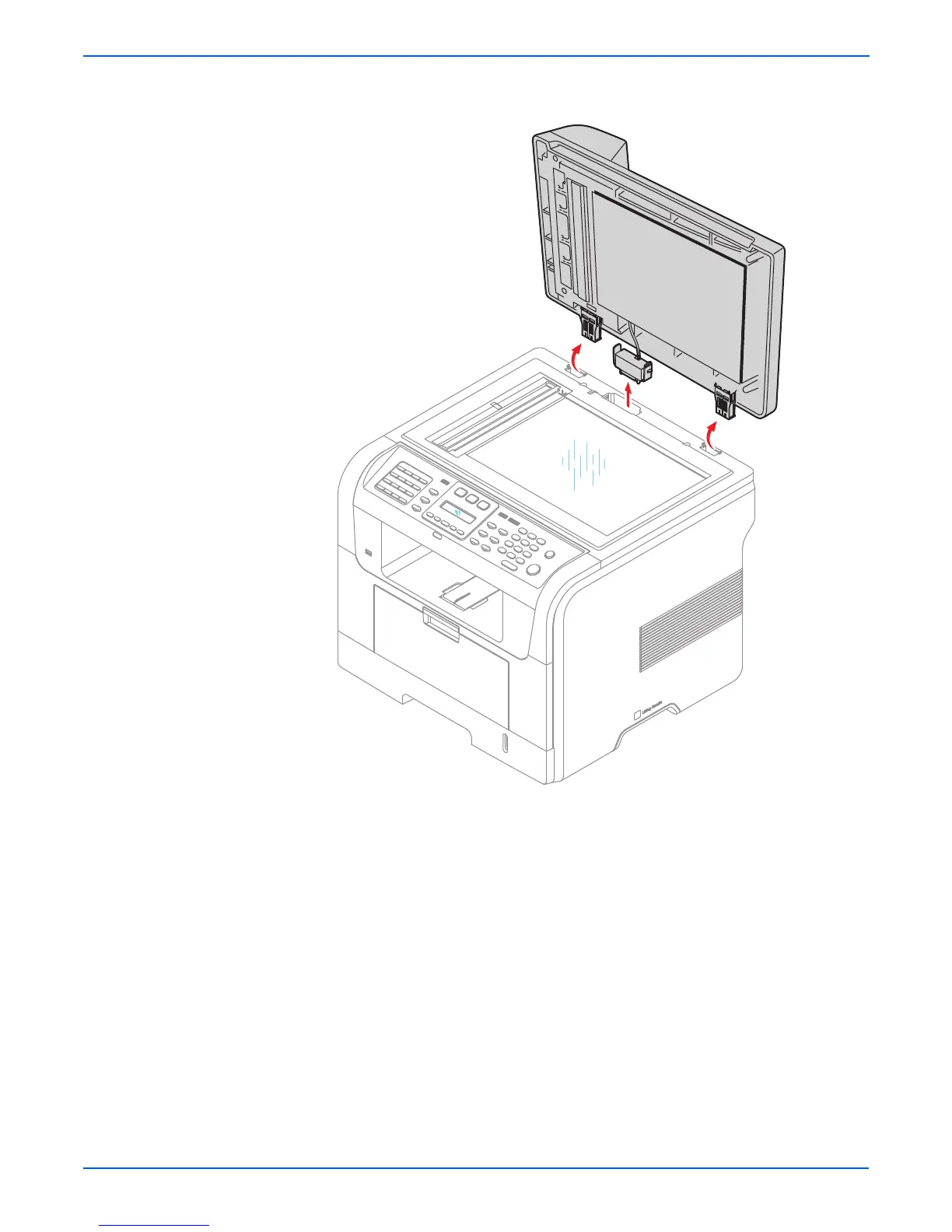

2. First remove the ADF Harness from the Platen Assembly and then pull
the ADF Assembly upward in the direction of arrow, as shown below.
s3300mfp-041
