Phaser 3300MFP Service Manual 8-49
Service Parts Disassembly

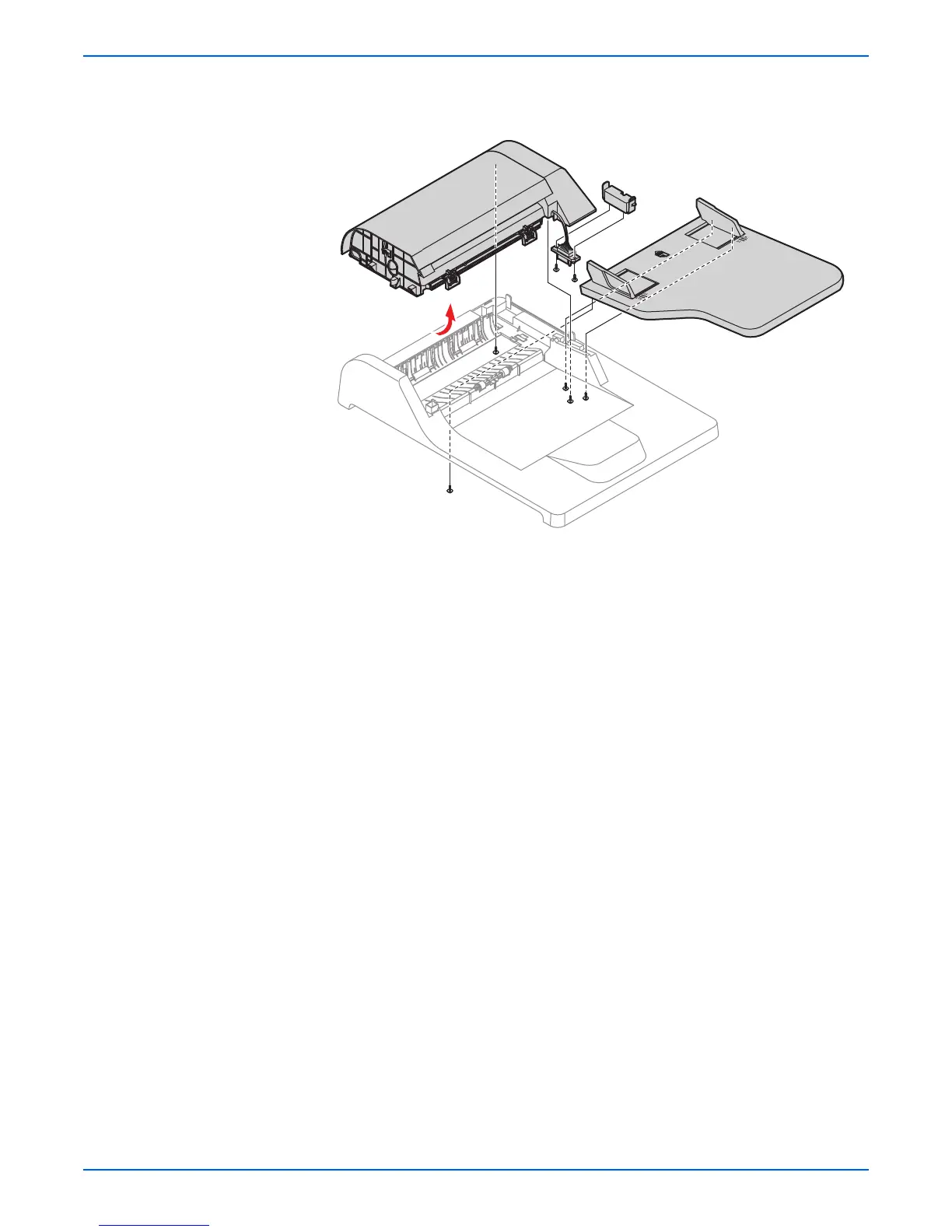

3. To remove the ADF Engine, first remove the seven screws securing the
ADF Engine to the Platen Cover, then release the ADF Engine in the
direction of the arrow, as shown below.
Take care to thread the ADF Harness through the Platen Cover.
s3300mfp-042
To Next Page
