8-50 Phaser 3300MFP Service Manual
Service Parts Disassembly

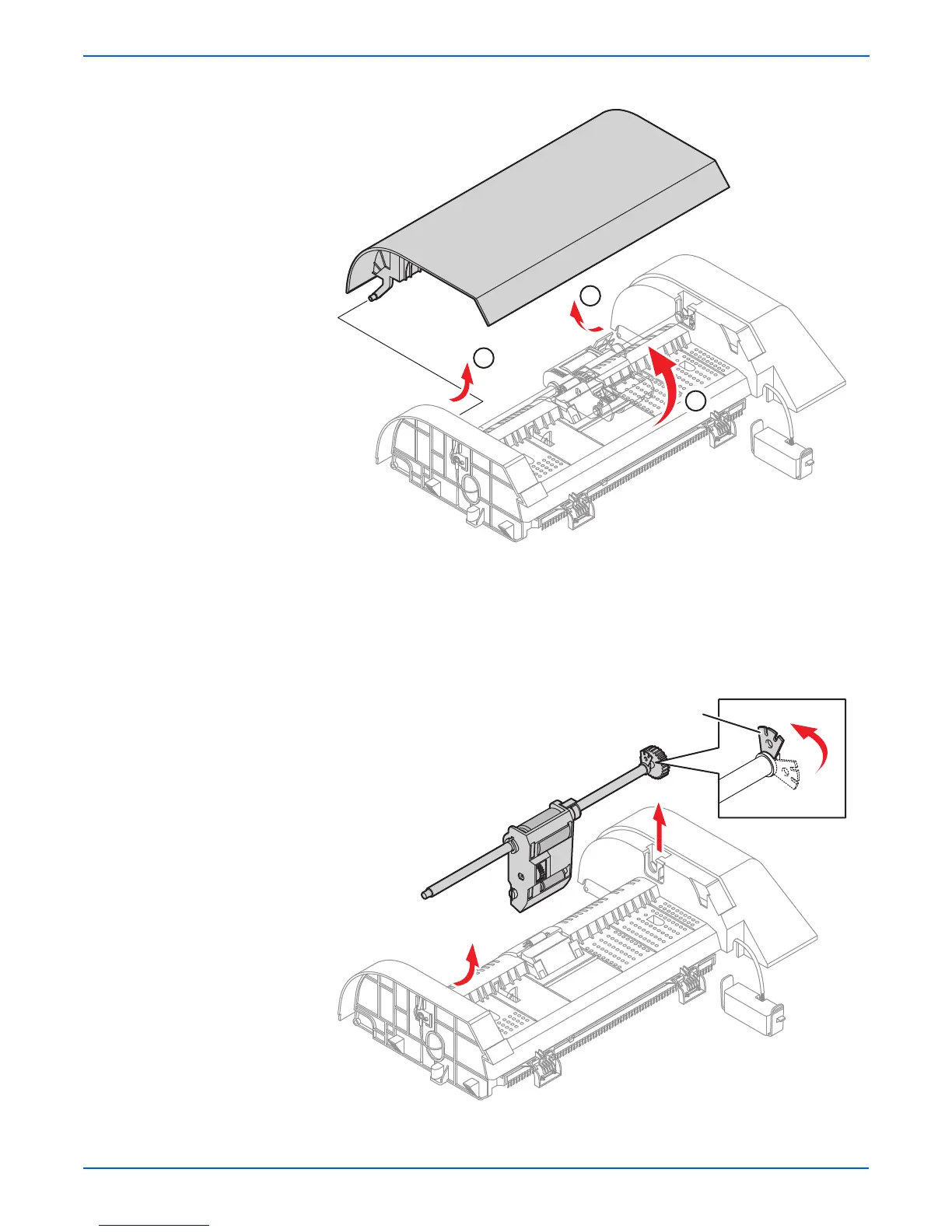

4. Remove the Open Cover, as shown below.
Note
When working on the ADF Motor Assembly take care not to
contaminate any of the rubber surfaces with grease.
5. Release the Bushing and rotate it until it reaches the slot, as shown
below. Then lift the Pick Up Assembly out.
s3300mfp-043
1
2
2
s3300mfp-044
Bushing
