Phaser 3300MFP Service Manual 8-55
Service Parts Disassembly

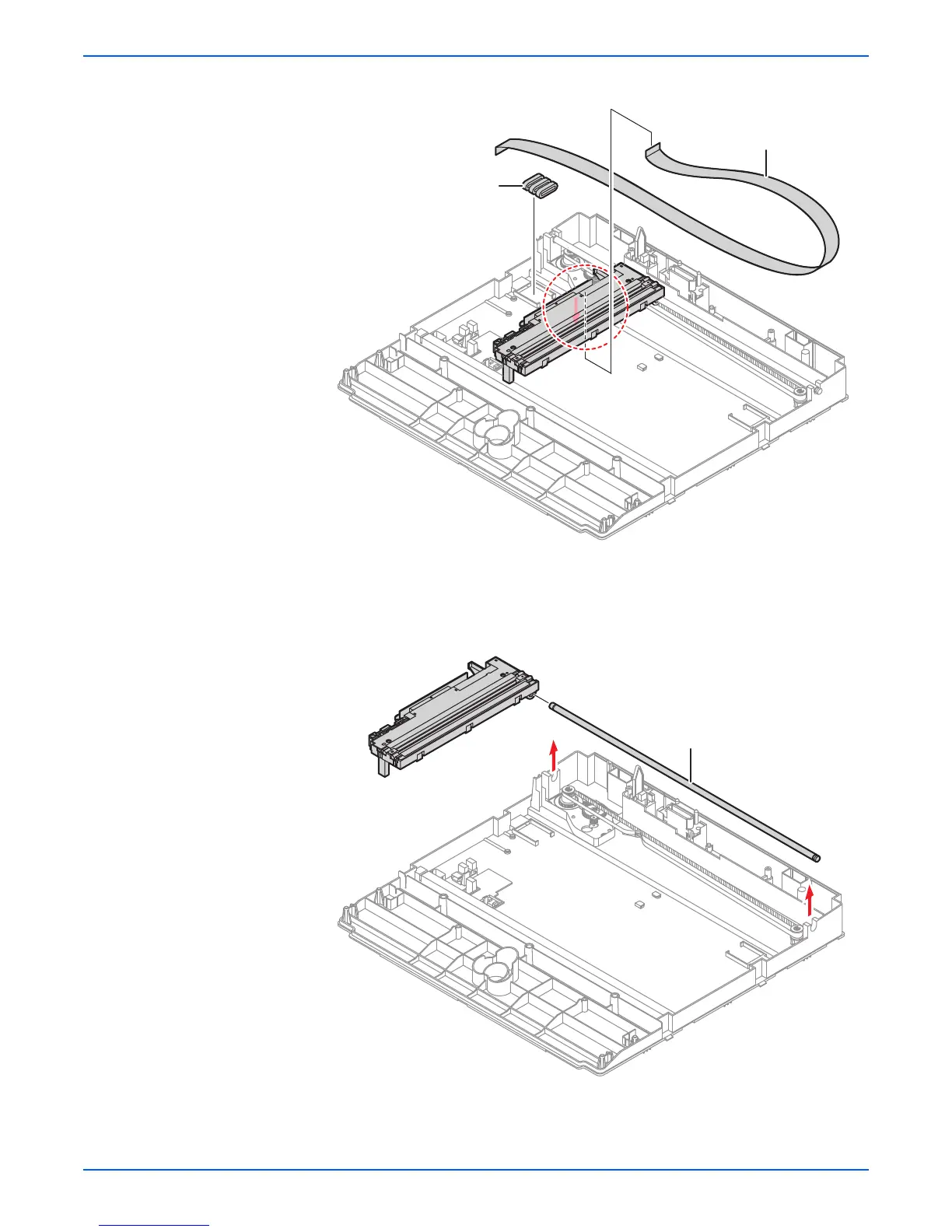

6. Remove the CCD Cable, as shown below.
Note
Remove the CCD Cable connector vertically to avoid any pin damage.
7. Pull up the CCD Shaft and take out the CCDM.
s3300mfp-052
Core
CCD Cable
s3300mfp-053
CCD Shaft
