8-56 Phaser 3300MFP Service Manual
Service Parts Disassembly

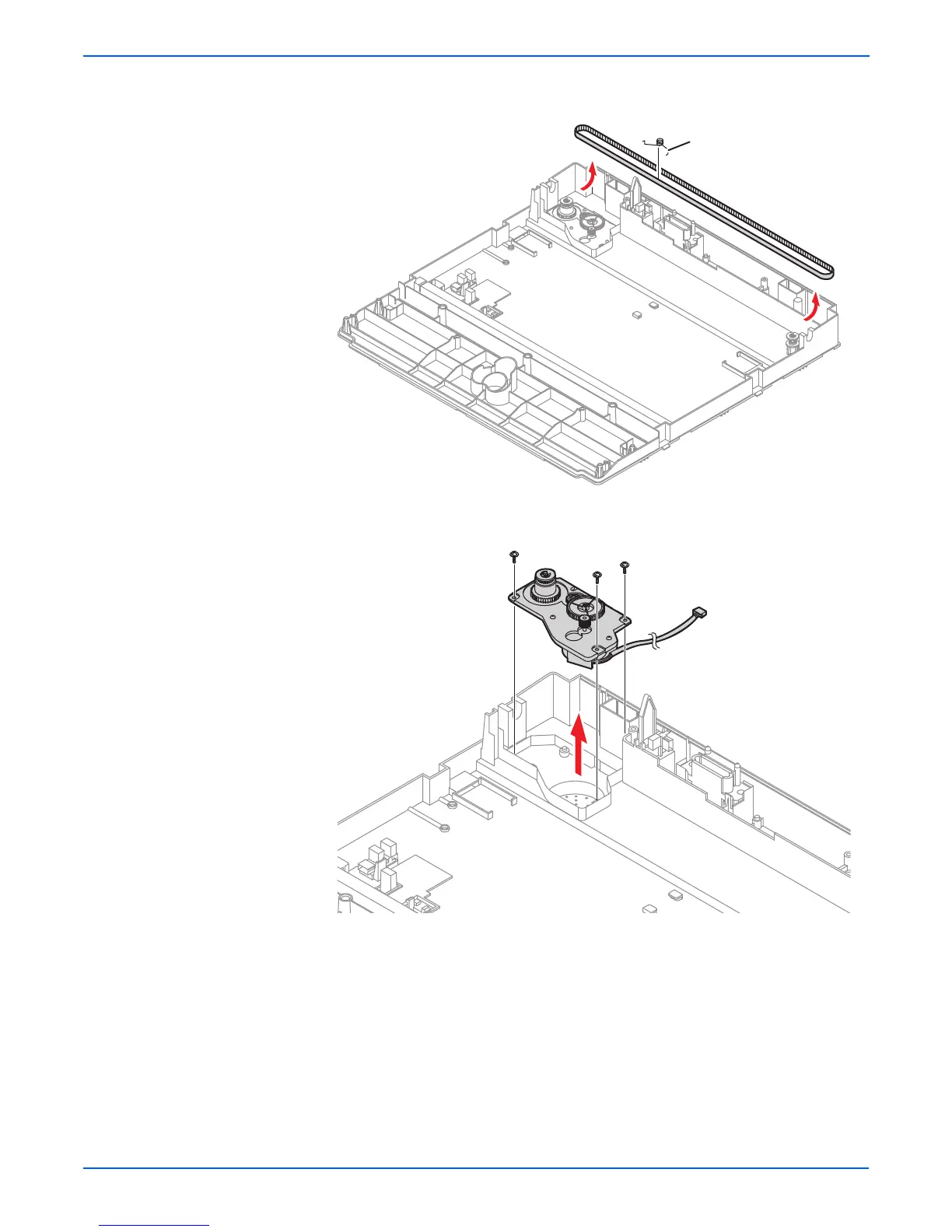

8. Squeeze the spring to release the tension in the Belt and lift from the
pulleys, as shown below.
9. Remove the three screws securing the Scan Motor Assembly and remove
it.
s3300mfp-054
Spring
s3300mfp-055

Xerox Phaser 3300 Specifications

General

Print Technology	Laser
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Automatic Document Feeder	50 sheets
Functions	Print, Copy, Scan, Fax
Copy Resolution	600 x 600 dpi
Connectivity	USB 2.0
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS
