Phaser 3300MFP Service Manual 8-57
Service Parts Disassembly

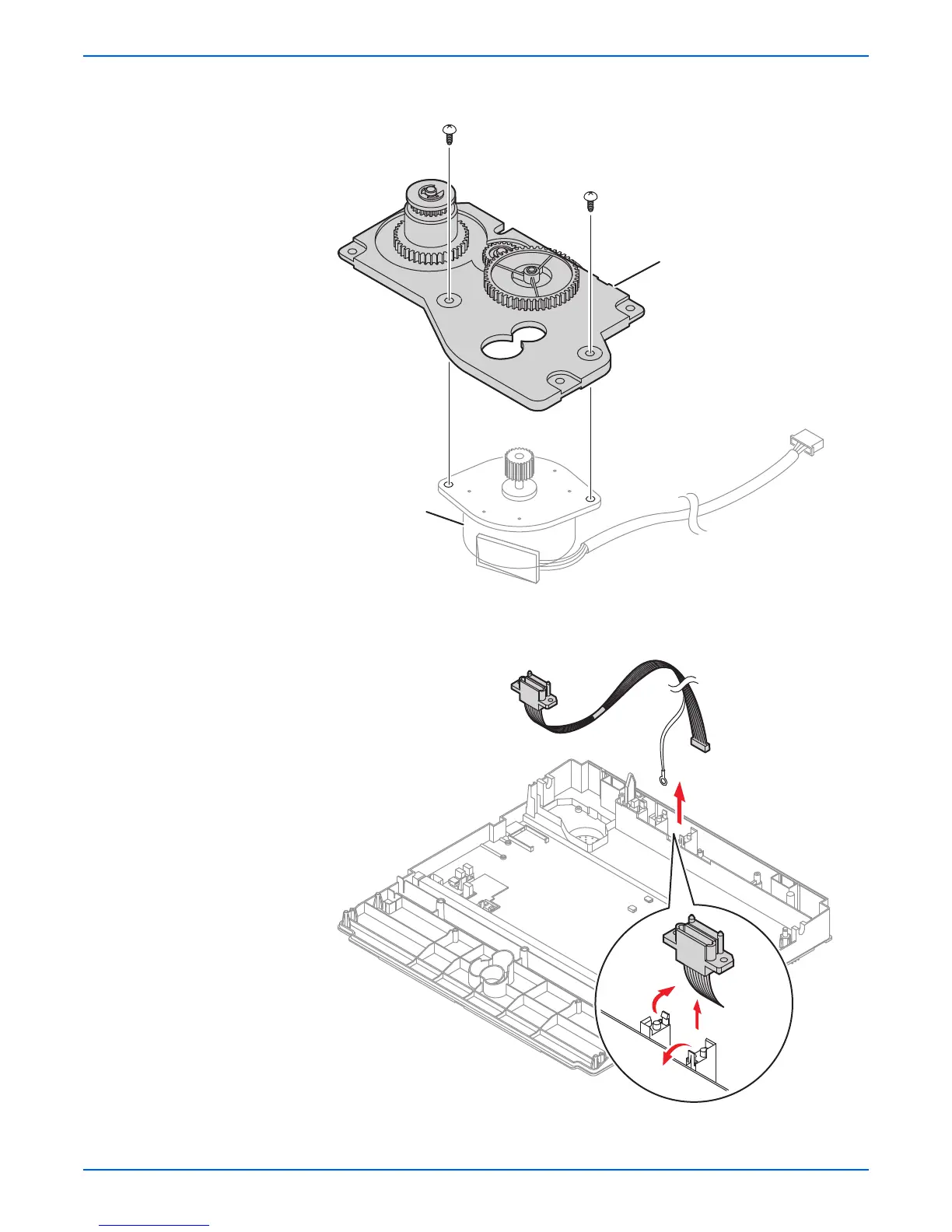

10. If necessary, remove the two screws securing the Scan Motor and remove
it, as shown below.
11. To remove the ADF Lower Harness, first unlatch the Hooks in the
direction of arrow and then carefully release the ADF Lower Harness from
the Scan Lower, as shown below.
s3300mfp-056
Gear Bracket Assembly
Scan Motor
s3300mfp-057
