8-58 Phaser 3300MFP Service Manual
Service Parts Disassembly

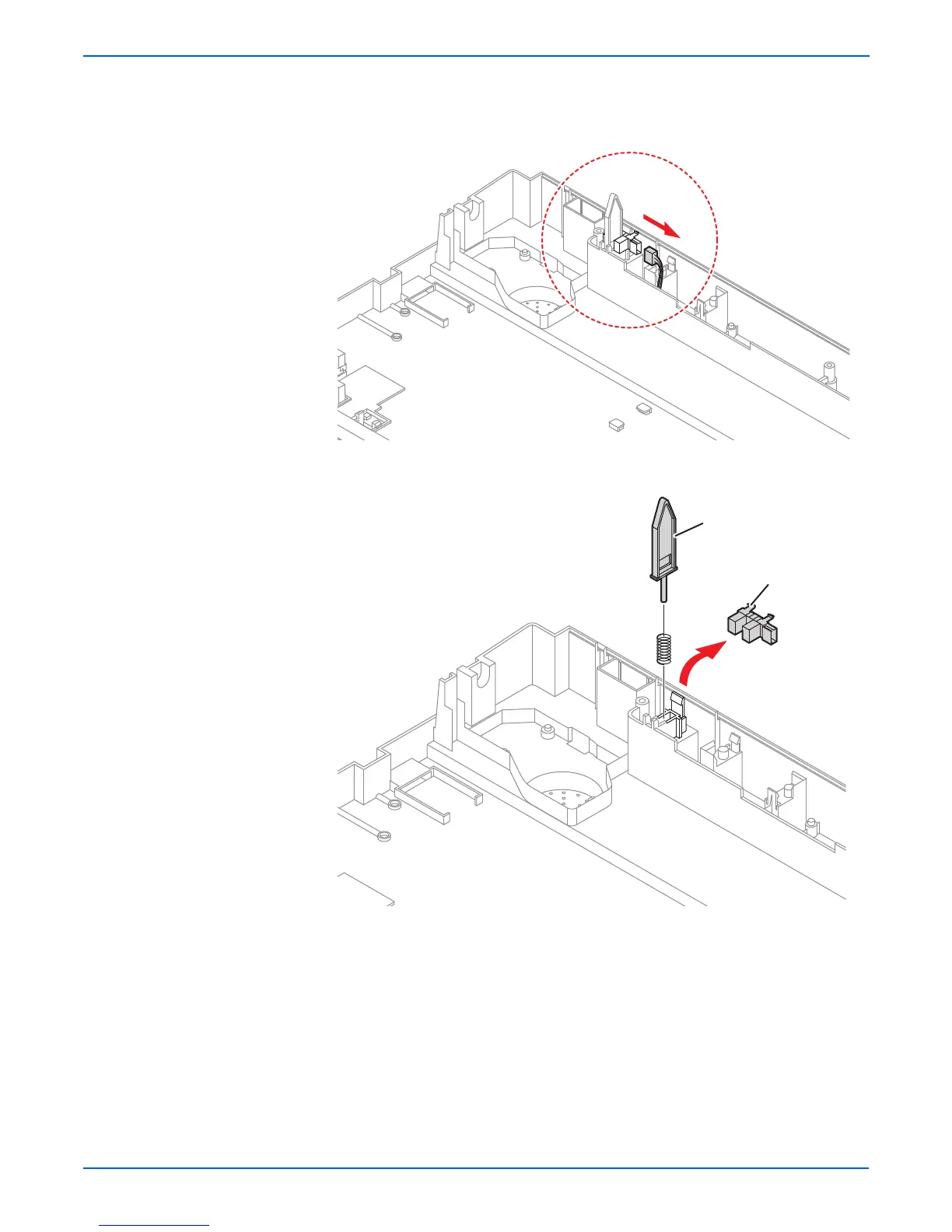

12. Unplug the connector from the Open Sensor Assembly.
13. Unlatch the Open Sensor and remove it, as shown below.
s3300mfp-058
s3300mfp-059
Sensor Lever
Open Sensor
