Xerox WorkCentre 3345

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-50

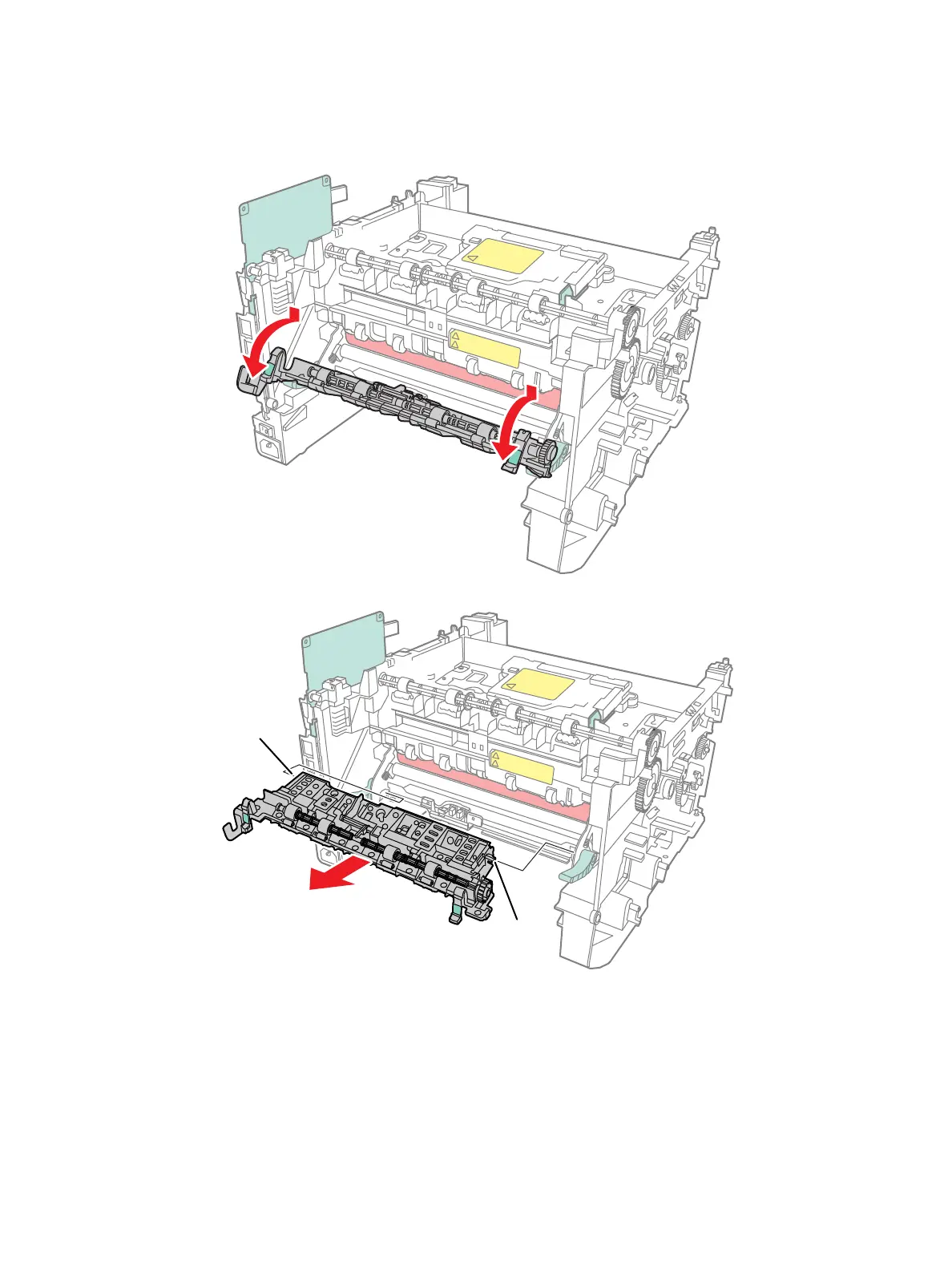

4. Push down on the Rear Frame levers, and release the Rear Frame bosses and remove the Rear
Frame.
5. Remove 2 screws (silver, metal, 6 mm) and let the Exit Sensor holder hang down.
s3320-077
s3320-078
Boss
Boss
