Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-51

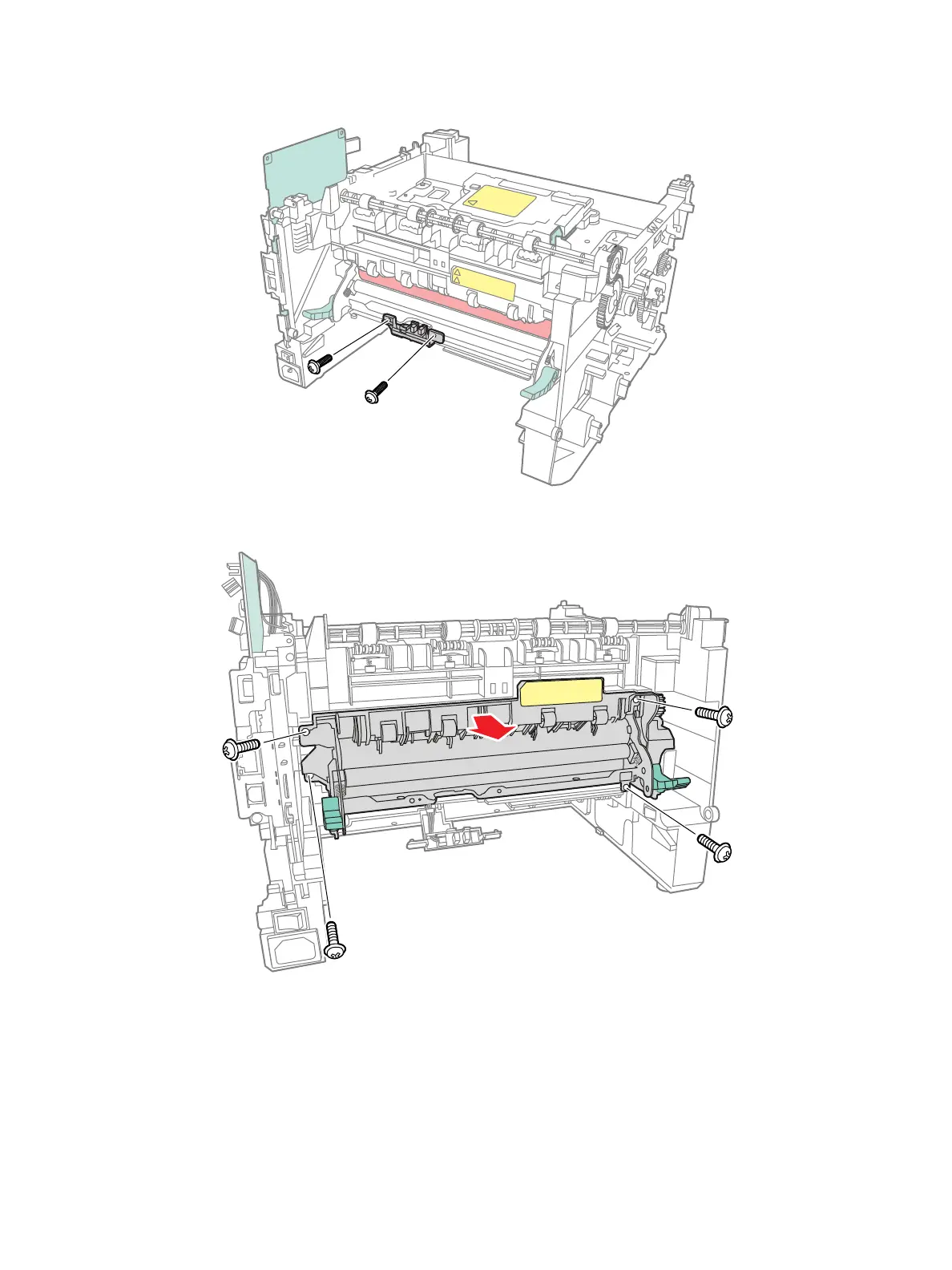

6. Remove 4 screws (silver, flanged, tap, 10 mm) and remove the Fuser.
s3320-081
s3320-082
