WorkCentre 5021/5019
3.4
Initial Issue
Image Quality
Figure 5 j0rk31013
4. Usage flow of the Alignment Adjustment Bracket
NOTE: Use this when pepr wrinkles (*1) has been generated due to interaction.
(1) Paper wrinkle due to interaction
• Paper wrinkle due to interaction between the Fusing Unit, Transfer, and Regi
• Cause: The positional relation between the various Sub Rolls is wrong, which
degenerates the transport form of the paper and results in wrinkles being gen-
erated in the Fusing Unit.
(2) *2: Sampling
• Paper: A3 SEF
• Pattern: Half Tone K50%
• No. of sheets: Simp 5 sheets

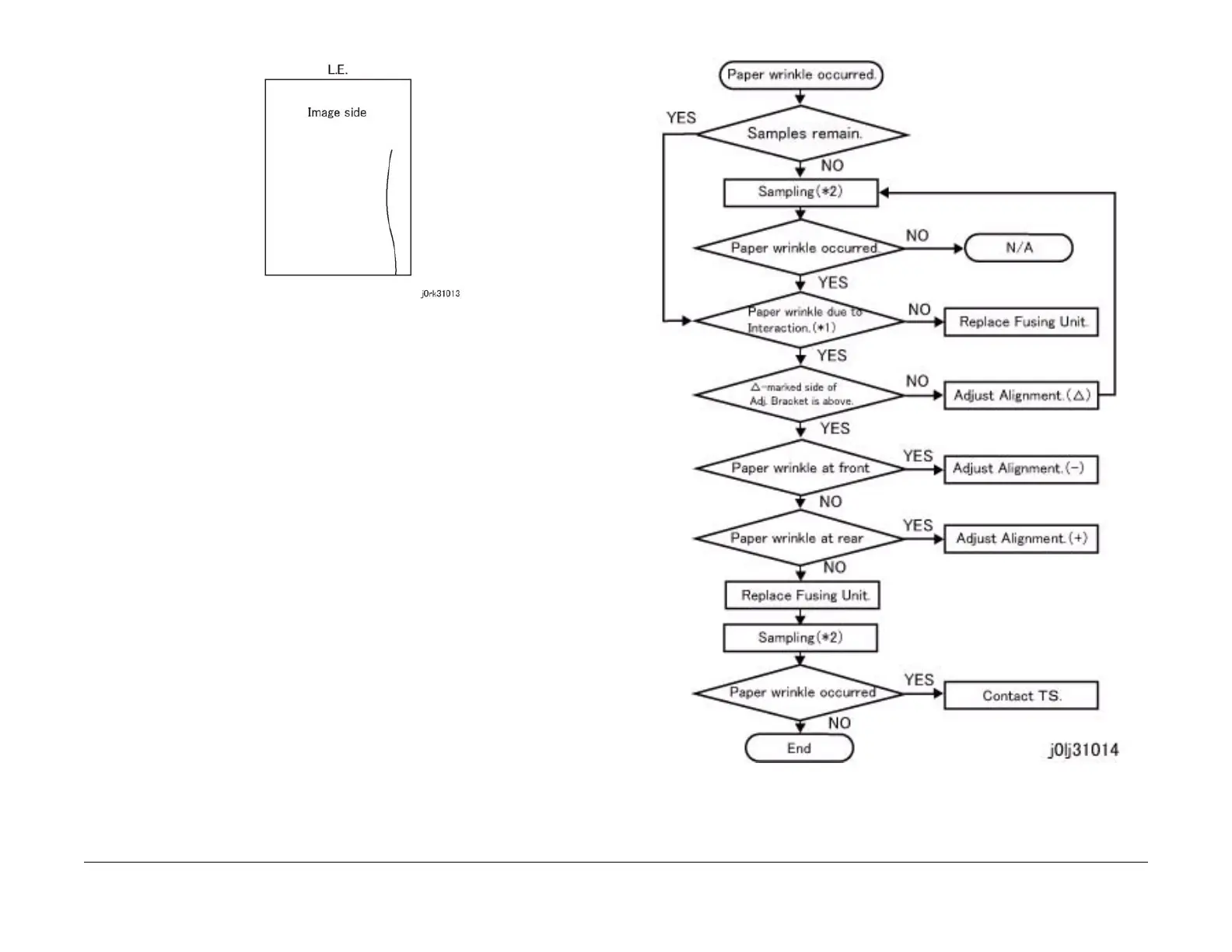

Figure 6 j0lj31014
