Xerox WorkCentre 5021 Service Documentation

08/2012
4-29
WorkCentre 5021/5019
REP 9.1.1
Repairs and Adjustments
Initial Issue
REP 9.1.1 Tray 1 Feed Clutch
Parts List on PL 9.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Rear Cover. (REP 19.2.1)

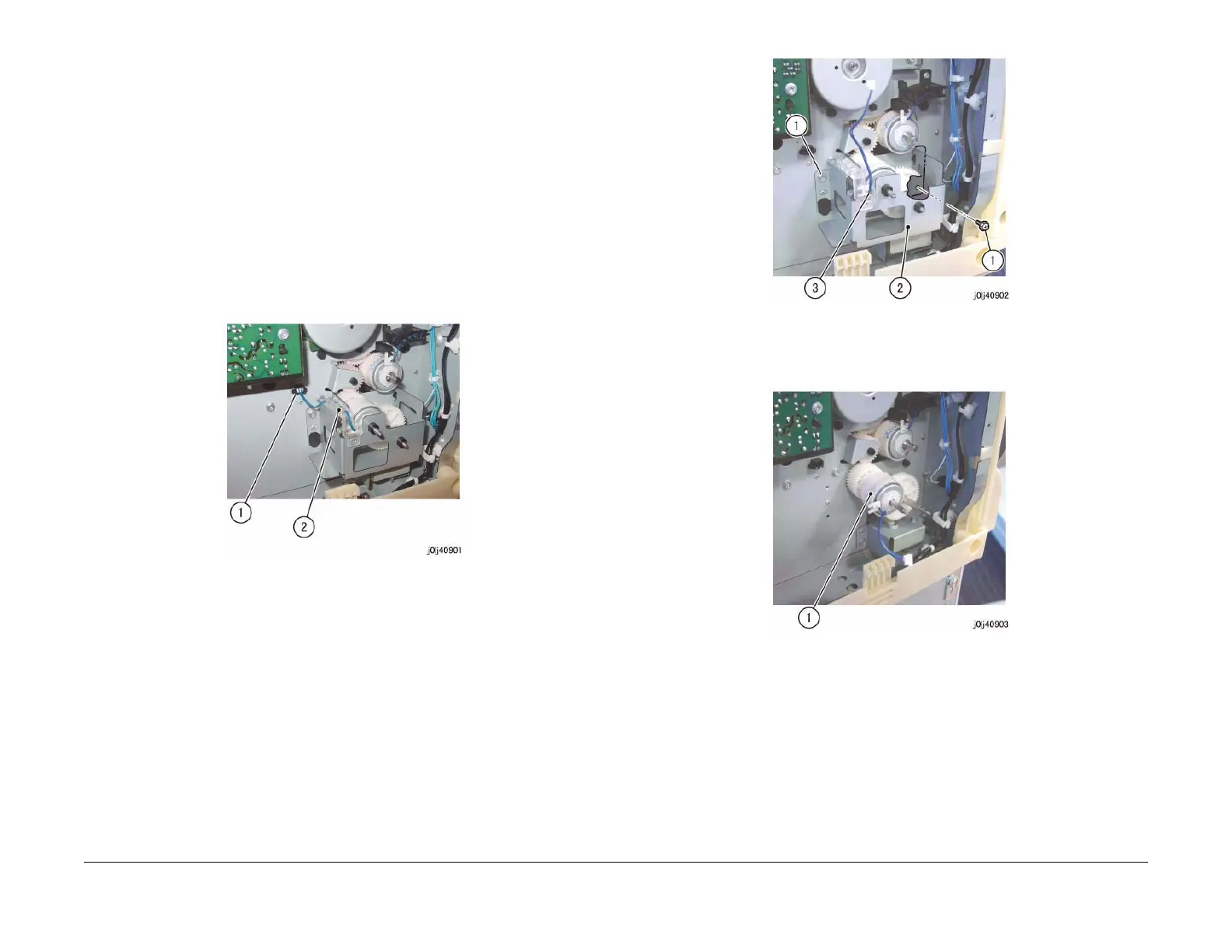

2. Disconnect the connector of the Tray 1 Feed Clutch. (Figure 1)
(1) Disconnect the connector.
(2) Remove the wire harness from the Harness Guide.
Figure 1 j0lj40901
3. Remove the Drive Bracket. (Figure 2)
(1) Remove the screw (x2).
(2) Remove the Drive Bracket.
(3) Remove the wire harness of the Tray 1 Feed Clutch.
Figure 2 j0lj40902
4. Remove the Tray 1 Feed Clutch. (Figure 3)
(1) Remove the Tray 1 Feed Clutch.
Figure 3 j0lj40903
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Drive Bracket, align the Tab of the Drive Bracket to the Cutout of the
Tray 1 Feed Clutch. (Figure 4)

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
