Xerox WorkCentre 5021 Service Documentation

08/2012
4-31
WorkCentre 5021/5019
REP 9.2.1
Repairs and Adjustments
Initial Issue
REP 9.2.1 Tray 1 Feed Roll and Tray 1 Retard Pad
Parts List on PL 9.2
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The Tray 1 Feed Roll and the Tray 1 Retard Pad must be replaced at the same time.
1. Remove Tray 1. (REP 9.1.2)
2. Remove the Bearing Cover. (Figure 1)
(1) Remove the Tapping Screw.
(2) Remove the Bearing Cover.

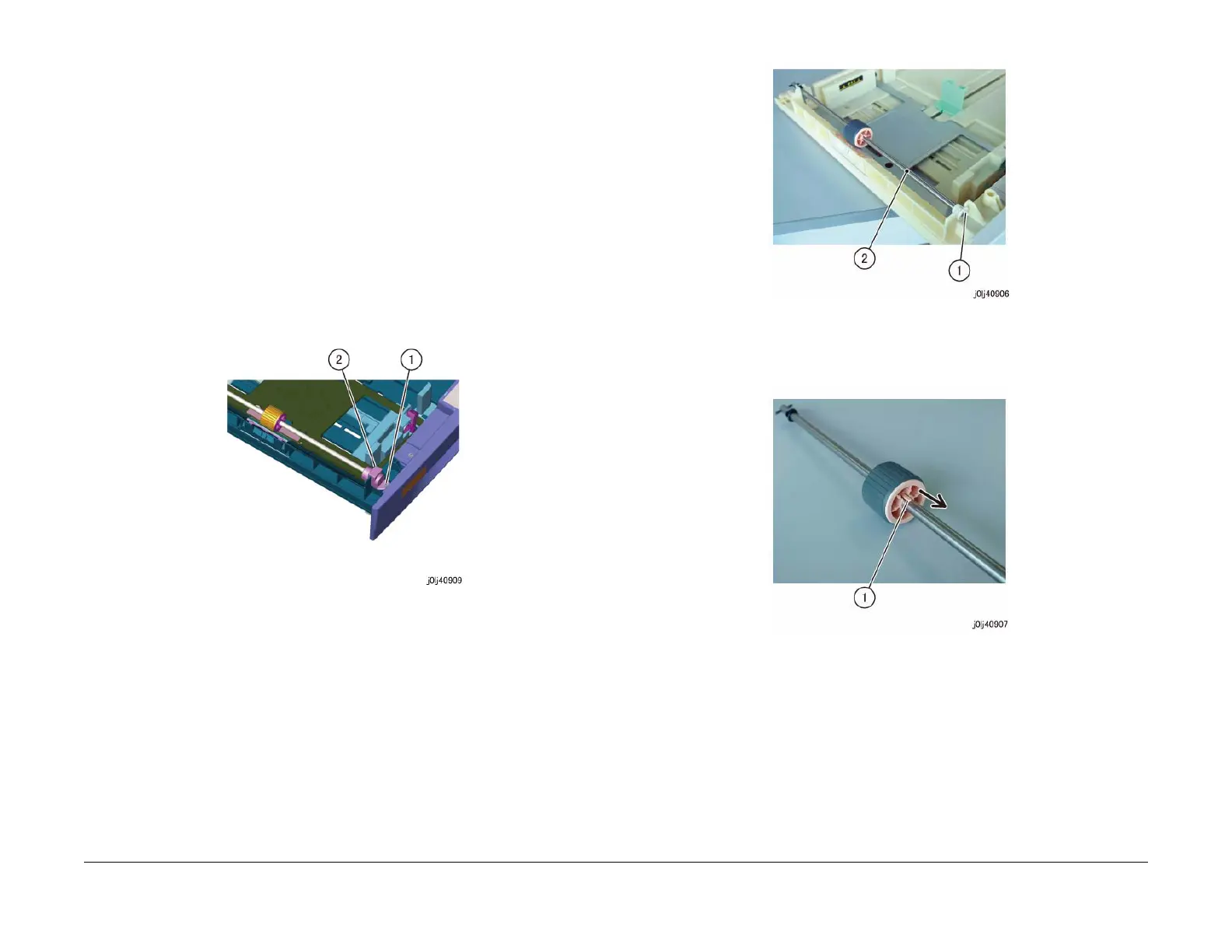

Figure 1 j0lj40909
3. Remove the Tray 1 Feed Roll and Shaft. (Figure 2)
(1) Release the hook to remove the bearing.
(2) Remove the Tray 1 Feed Roll and Shaft.
Figure 2 j0lj40906
4. Remove the Tray 1 Feed Roll. (Figure 3)
(1) Release the hook and remove the Tray 1 Feed Roll in the direction of the arrow.
Figure 3 j0lj40907
5. Remove the Tray 1 Retard Pad. (Figure 4)
(1) Release the hook and open the Tray 1 Retard Pad.
(2) Remove the Tray 1 Retard Pad.
(3) Pull out and remove the shaft.
