08/2012
4-75
WorkCentre 5021/5019
REP 56.6.2, REP 56.7.1
Repairs and Adjustments
Initial Issue

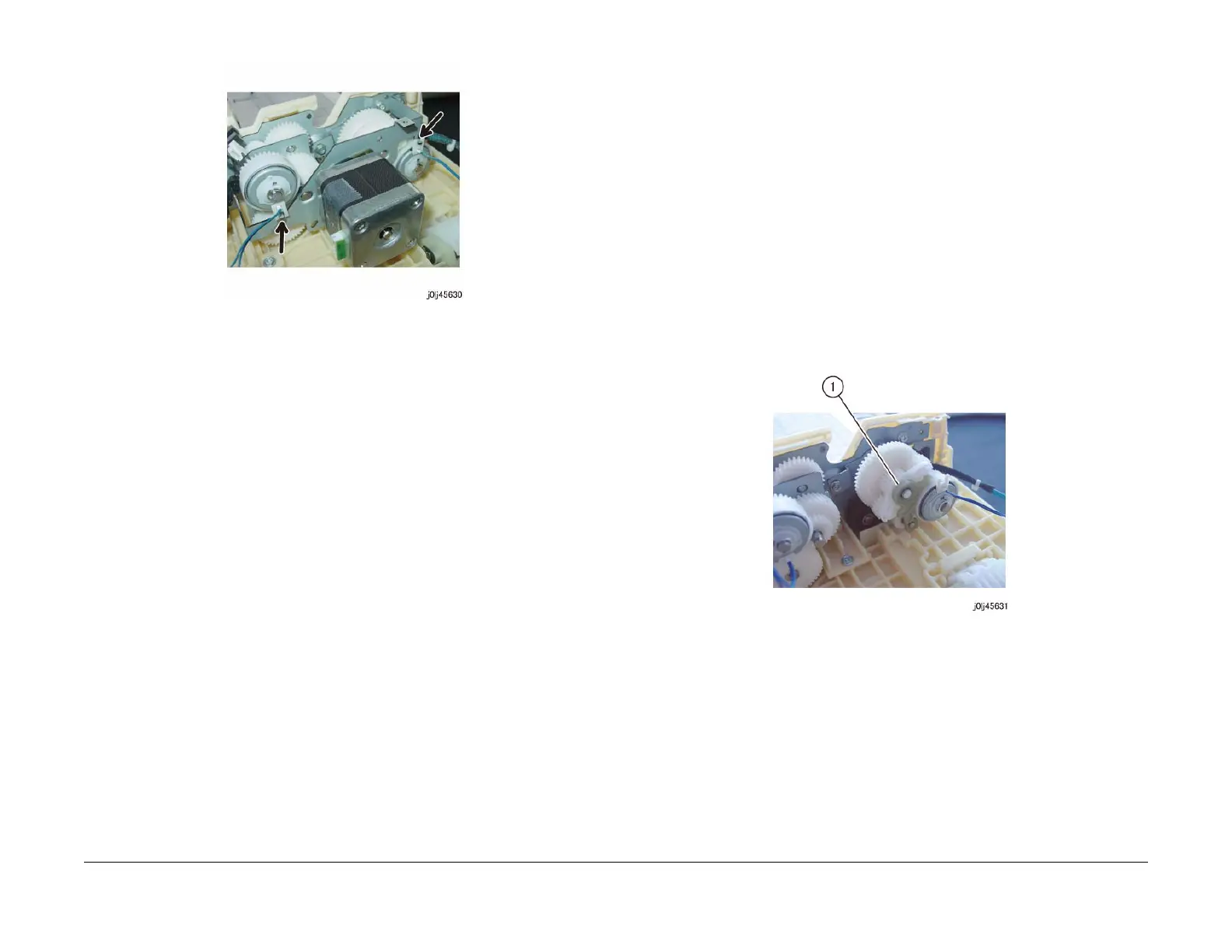

Figure 2 j0lj45630
REP 56.7.1 DADF Drive Belt
Parts List on PL 56.7
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Document Tray. (REP 56.9.1)
4. Remove the Harness Guide and the wire harness. (REP 56.6.1)
5. Remove the DADF Feed Motor. (REP 56.6.2)
6. Remove the link. (Figure 1)
(1) Remove the link.
Figure 1 j0lj45631
7. Remove the gear and bracket. (Figure 2)
(1) Remove the washer (large: thin).
(2) Remove the washer (small: thick).
(3) Remove the gear and bracket.
To Next Page
