Xerox WorkCentre 5021 - 3 Drive; PL 3.1 Main Drive Motor

08/2012
5-14
WorkCentre 5021/5019
PL 3.1
Initial Issue
Parts List

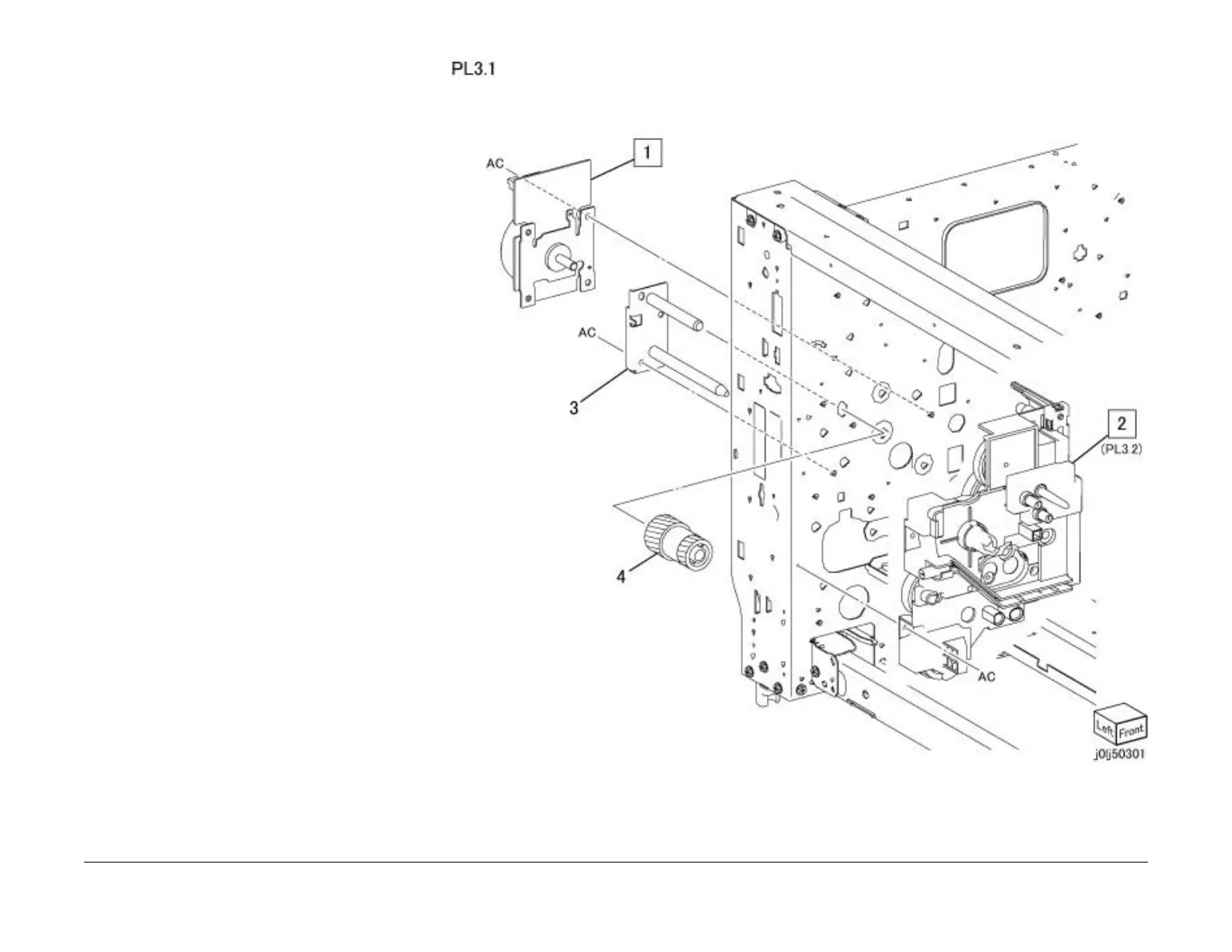

PL 3.1 Main Drive Motor
Item Parts No Description A.C.
1 127K 66260 Main Drive Motor (Alternate) (REP
3.1.1, REP 99.1.1)3010
– 127K 66290 Main Drive Motor (Alternate) (REP
3.1.1, REP 99.1.1)3010
2 007K 18870 Main Drive Housing (PL 3.2) (REP
3.1.2)30B1
3 049K 17710 Stud Bracket 30B2
4 807E 39260 Helical Gear 30B3
