Xerox WorkCentre 5021 Service Documentation

08/2012
5-38
WorkCentre 5021/5019
PL 14.4
Initial Issue
Parts List

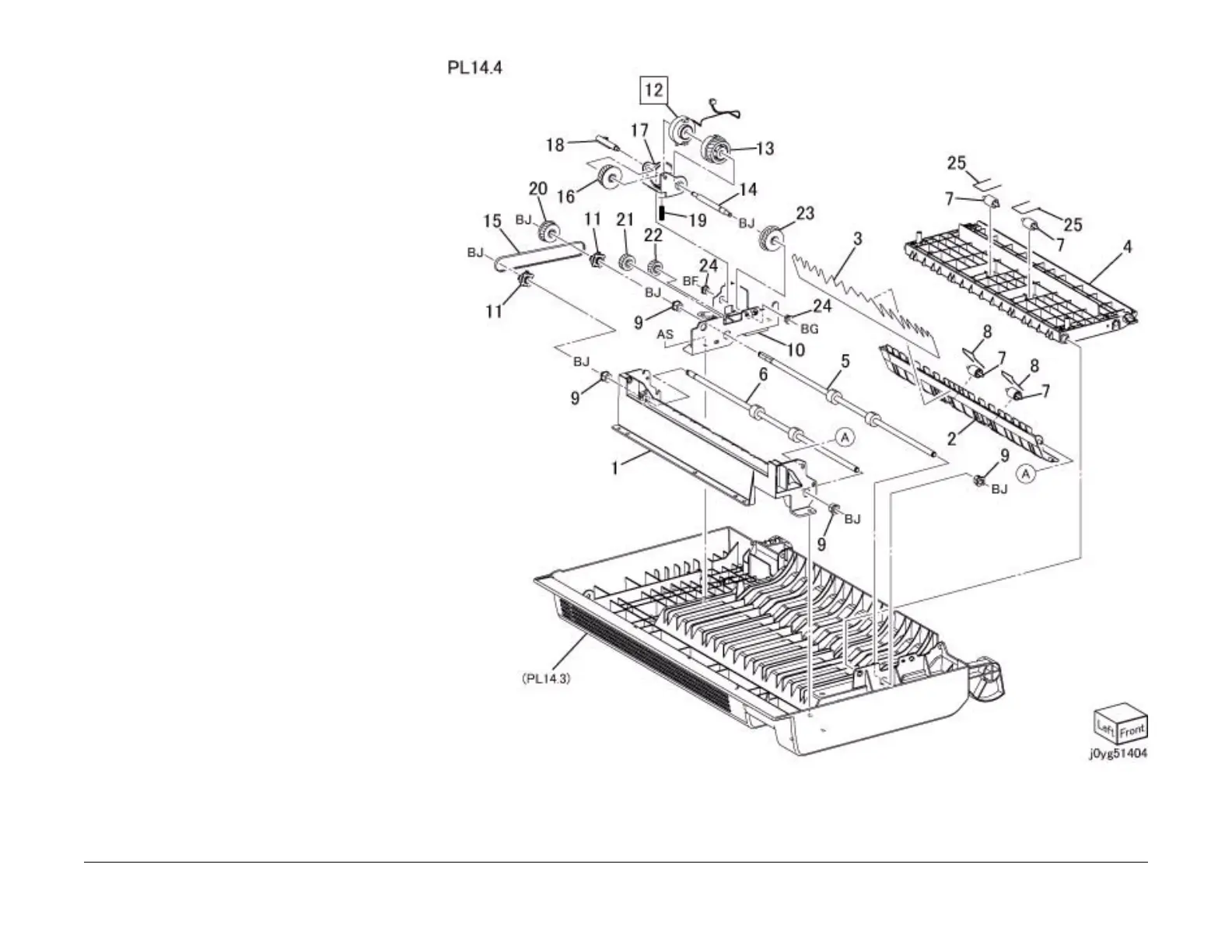

PL 14.4 Duplex L/H Cover-Roll,Gear
Item Parts No Description A.C.
1 054E 49711 L/H Cover Upper Chute 52E1
2 – L/H Cover Upper Lower Chute
52E2
3 038E 27201 Paper Guid 52E3
4 – Duplex Inner Chute 52E4
5 059K 74950 Duplex Roll 1 52E5
6 059K 74960 Duplex Roll 2 52E6
7 059E 04010 Pinch Roll 5235
8 809E 75530 Spring 52E7
9 013E 40060 Bearing 52E8
10 – Gear Bracket 52E9
11 020E 45140 Pulley 52EB
12 121K 52130 Duplex Clutch(REP 99.1.1)5252
13 807E 40930 Helical Gear 52EC
14 – Duplex Clutch Shaft 52ED
15 023E 27800 Belt 5253
16 807E 39430 Swing Helical Gear (27T)52EE
17 868E 77401 Swing Bracket 52EF
18 806E 37111 Swing Shaft 52EG
19 809E 99740 Spring 52EH
20 – Helical Gear (24T) 52EJ
21 – Helical Gear (19T) 52EK
22 – Helical Gear (17T) 52EL
23 – Helical Gear (28T) 52EM
24 413W 11460 Bearing 52EN
25 809E 75530 Spring 52EP

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
