WorkCentre 5021/5019
REP 1.2.1, REP 1.3.1
Repairs and Adjustments
Initial Issue
REP 1.2.1 IIT Top Cover
Parts List on PL 1.2
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Platen Cover or the DADF. (REP 56.1.1)
2. Remove the IIT Top Cover. (Figure 1)
(1) Remove the screw (x7).
(2) Remove the IIT Top Cover.

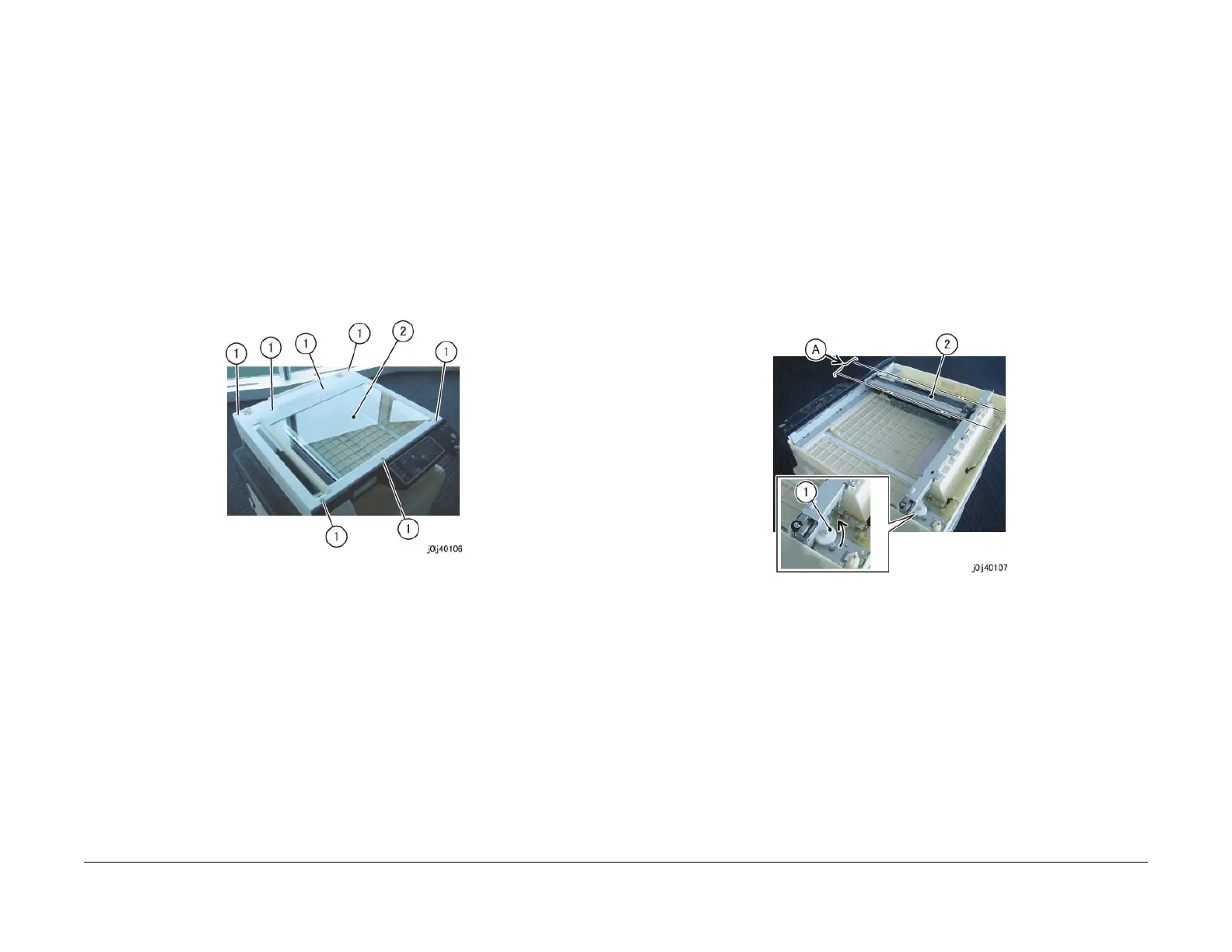

Figure 1 j0lj40106
Replacement
1. To install, carry out the removal steps in reverse order.
REP 1.3.1 IIT Carriage
Parts List on PL 1.3
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Platen Cover or the DADF. (REP 56.1.1)
2. Remove the IIT Top Cover. (REP 1.2.1)
3. Move the IIT Carriage to the opening of the Frame. (Figure 1)
(1) Rotate the gear in the direction of the arrow.
(2) Move the IIT Carriage to the opening (Arrow A) of the Frame.
Figure 1 j0lj40107
4. Remove the IIT Carriage Belt from the IIT Carriage. (Figure 2)
(1) Remove the IIT Carriage Belt in the direction of the arrow.
