Xerox WorkCentre 5021 Service Documentation

08/2012
4-43
WorkCentre 5021/5019
REP 14.1.1
Repairs and Adjustments
Initial Issue
REP 14.1.1 L/H Cover
Parts List on PL 14.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the MSI. (REP 13.1.1)

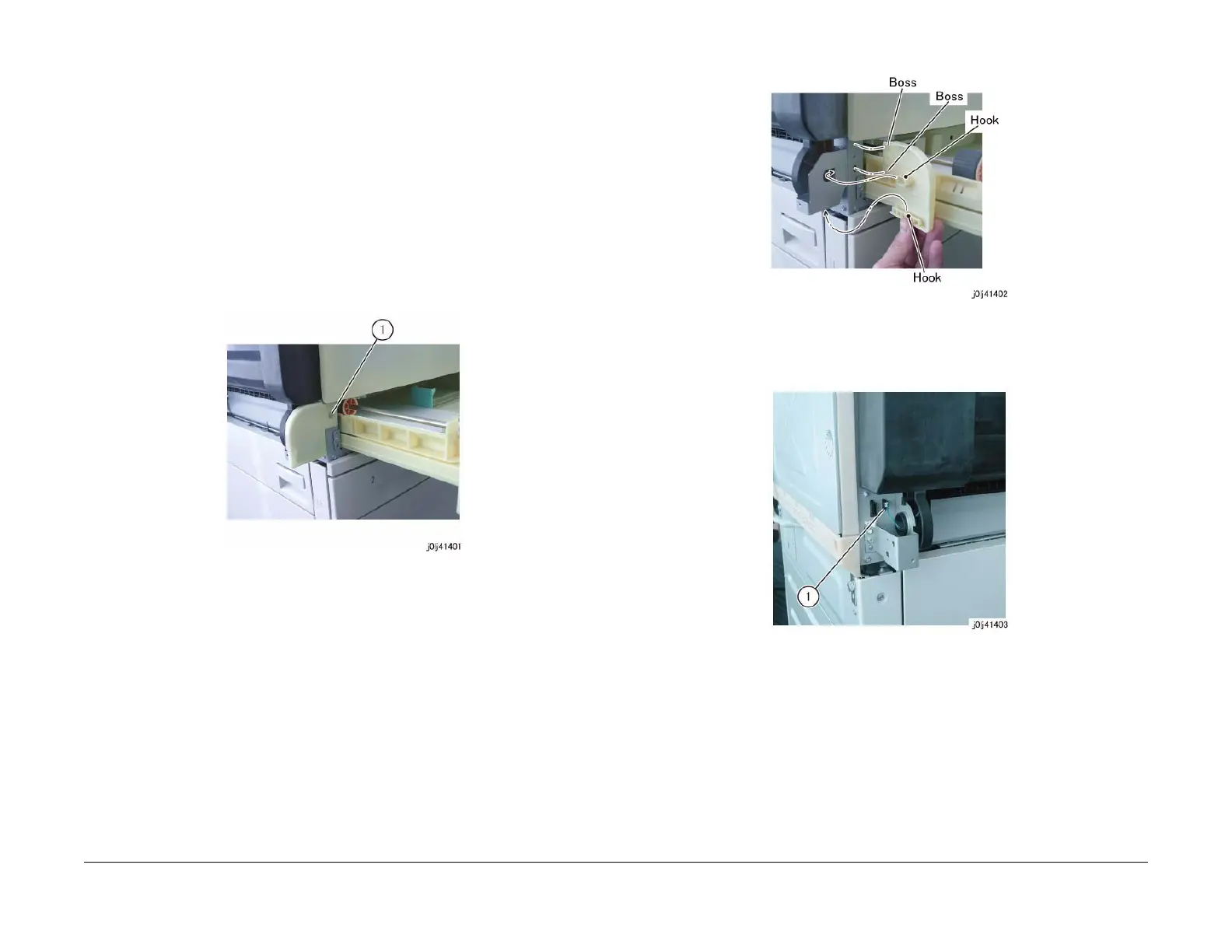

2. Pull out Tray 1 slightly and remove the screw that secures the Hinge Front Cover. (Figure
1)
(1) Remove the screw.
Figure 1 j0lj41401
3. Release the hook (x2) and release the boss (x2) from the installation holes to remove the
Hinge Front Cover. (Figure 2)
Figure 2 j0lj41402
4. [Duplex Type]: Disconnect the connector. (Figure 3)
(1) Disconnect the connector.
Figure 3 j0lj41403
5. Remove the L/H Cover. (Figure 4)
(1) Rotate by 90 degrees and remove the L/H Cover Support.
(2) With the L/H Cover in 90 degrees opened state, align the Tab of the L/H Cover to the
Cutout of the Right Hinge and release the boss (x2) of the L/H Cover in the direction
of the arrow.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
