Xerox WorkCentre 5021 Service Documentation

08/2012
4-42
WorkCentre 5021/5019
REP 13.3.2
Initial Issue
Repairs and Adjustments

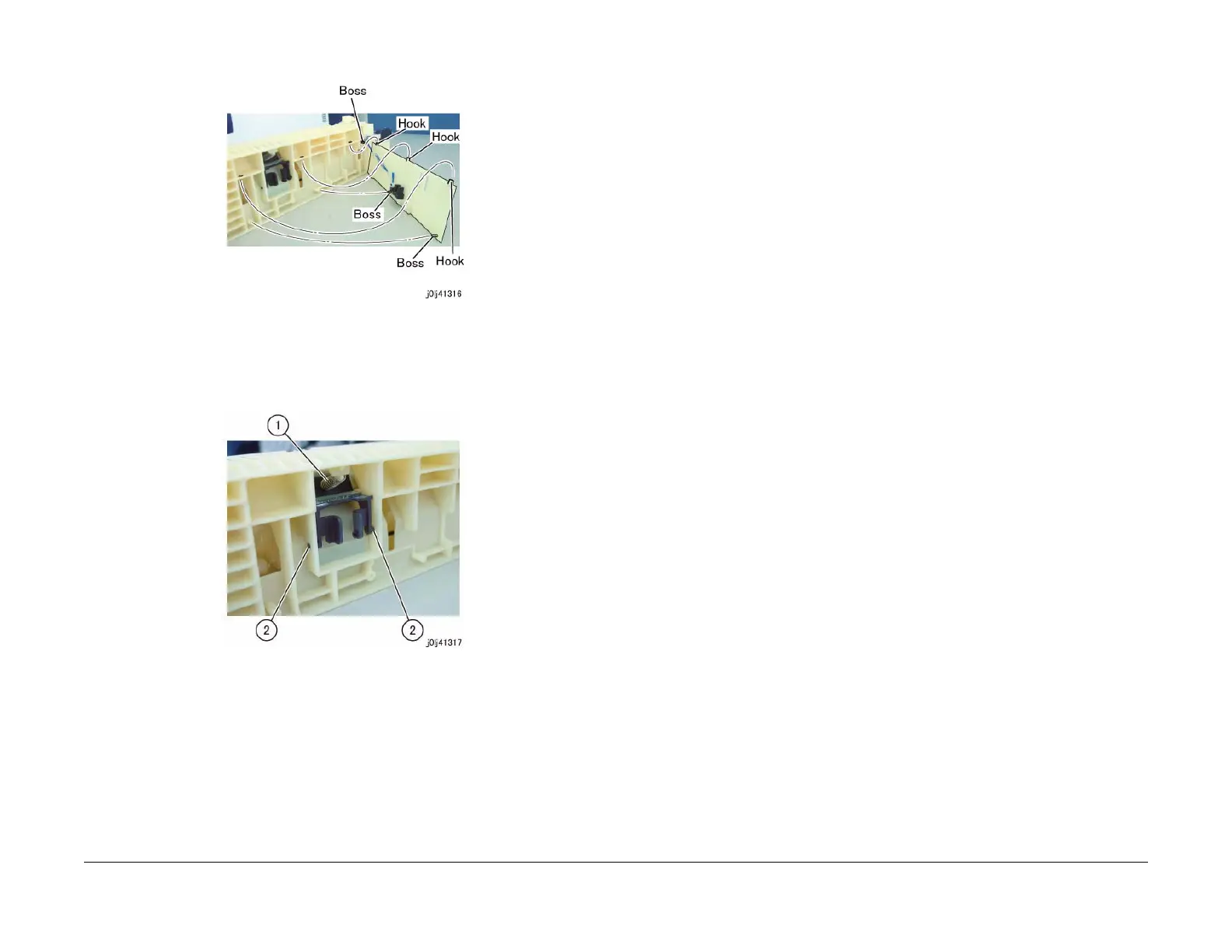

Figure 2 j0lj41316
4. Remove the MSI Retard Pad. (Figure 3)
(1) Remove the spring.
(2) Release the boss (x2) from the installation holes and remove the MSI Retard Pad.
Figure 3 j0lj41317
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
'Chain Link : 950-802'
