08/2012
4-27
WorkCentre 5021/5019
REP 8.2.1, REP 8.2.2
Repairs and Adjustments
Initial Issue

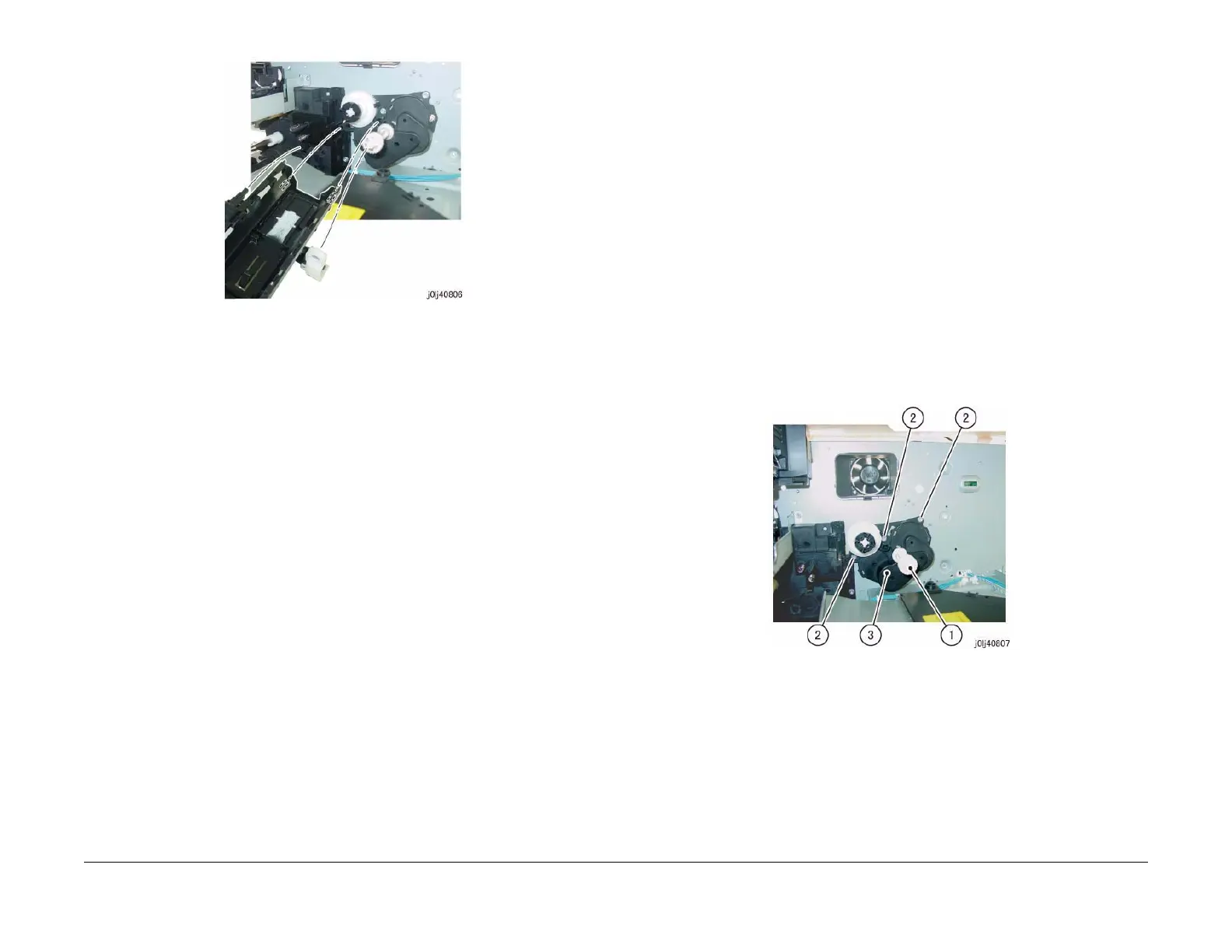

Figure 2 j0lj40806
REP 8.2.2 Dispense Drive
Parts List on PL 8.2
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Drum Cartridge. (REP 8.1.1)
2. Remove the Toner Cartridge. (PL 8.1)
3. Remove the Front Cover. (REP 19.1.1)
4. Remove the Top Cover. (REP 19.1.2)
5. Remove the Cartridge Guide. (REP 8.2.1)
6. Remove the Dispense Drive. (Figure 1)
(1) Remove the gear.
(2) Remove the screw (x3).
(3) Remove the Dispense Drive.
Figure 1 j0lj40807
Replacement
1. To install, carry out the removal steps in reverse order.
