Xerox WorkCentre 5021 Service Documentation

08/2012
4-50
WorkCentre 5021/5019
REP 17.1.2
Initial Issue
Repairs and Adjustments
REP 17.1.2 Exit Roll
Parts List on PL 17.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Fusing Unit. (REP 7.1.1)
2. Remove the MSI. (REP 13.1.1)
3. Remove the L/H Cover. (REP 14.1.1)

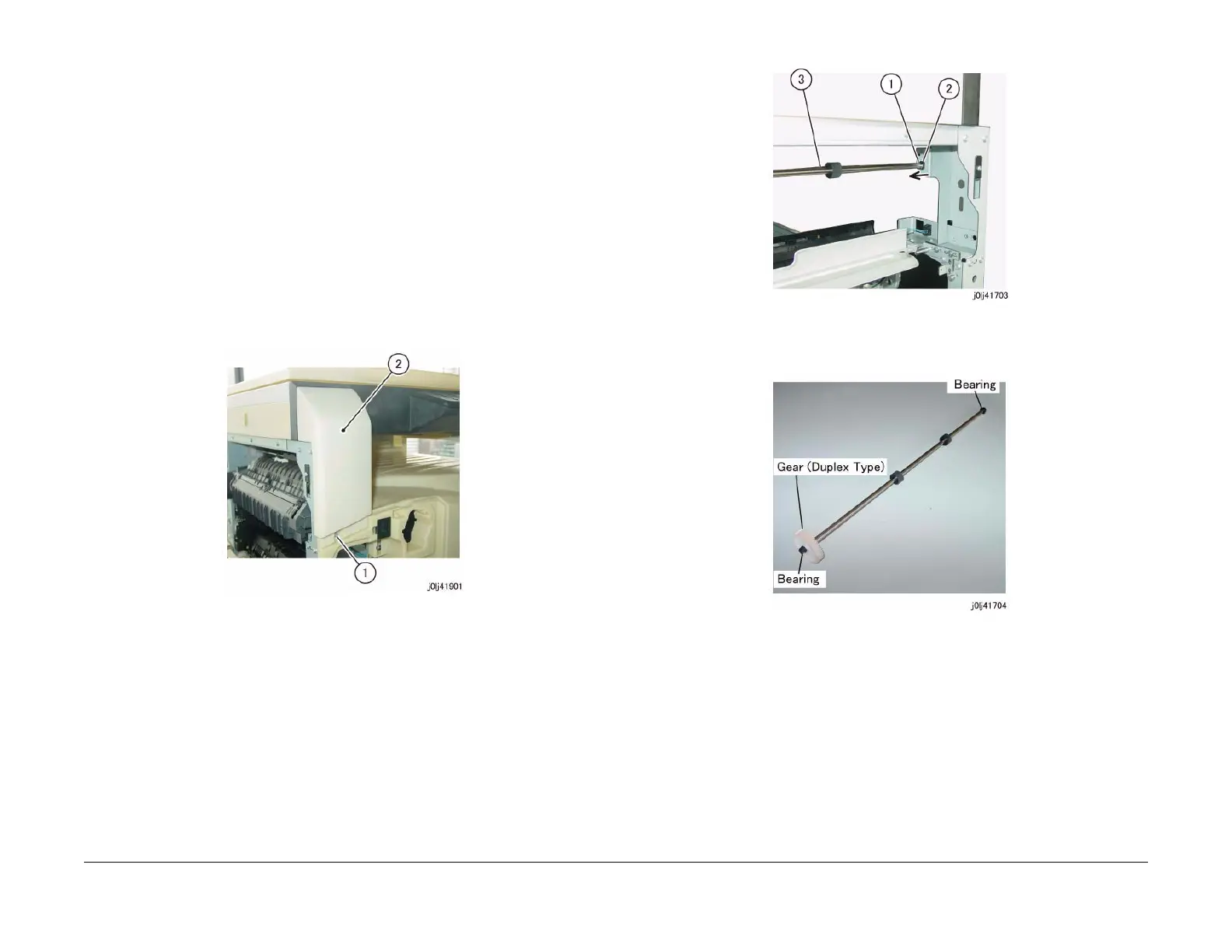

4. Remove the Fusing Unit Cover. (Figure 1)
(1) Remove the screw.
(2) Remove the Fusing Unit Cover.
Figure 1 j0lj41901
CAUTION
When removing the Exit Roll, be careful so as not to drop the bearing at the rear of the
Exit Roll into the machine. (Figure 3)
5. Remove the Exit Roll. (Figure 2)
(1) Remove the E-Clip or the KL-Clip.
(2) Move the bearing in the direction of the arrow.
(3) Remove the Exit Roll.
Figure 2 j0lj41703
Reference: This shows the removed Exit Roll. (Figure 3)
Figure 3 j0lj41704
Replacement
1. To install, carry out the removal steps in reverse order.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
