Xerox WorkCentre 5021 Service Documentation

08/2012
5-47
WorkCentre 5021/5019
PL 56.3
Parts List
Initial Issue

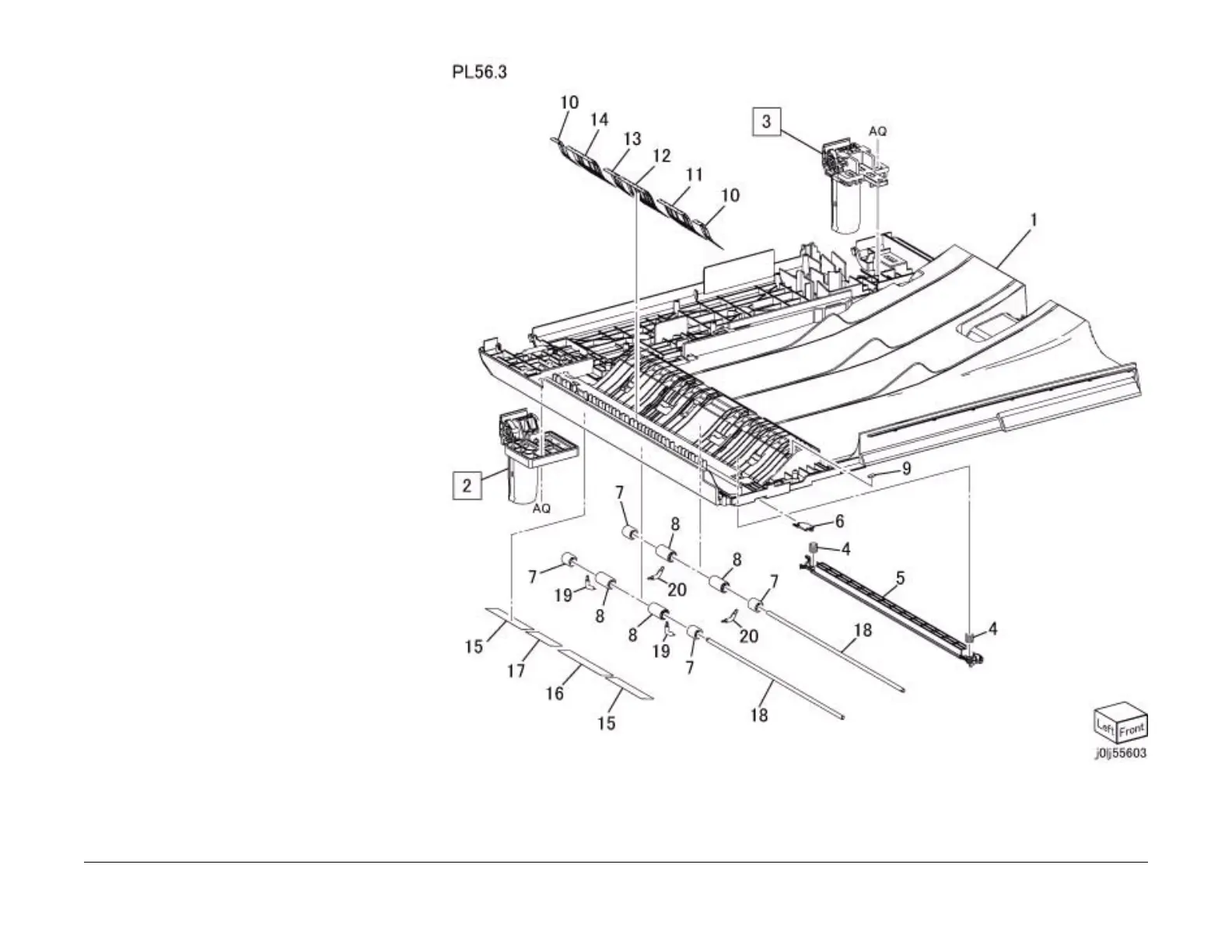

PL 56.3 DADF Base Frame
Item Parts No Description A.C.
1 – DADF Base Frame 22D1
2 036K 92141 Left Counter Balance (REP 56.3.1,
REP 99.1.1)22D2
3 036K 92130 Right Counter Balance (REP
56.3.2, REP 99.1.1)22D3
4 809E 86290 CVT Spring 22D4
5 – CVT Chute 22D5
6 803E 13340 CVT Stopper 22D6
7 059E 98711 Registration Pinch Roll (Short)
22D7
8 059E 98701 Registration Pinch Roll (Long)22D8
9 – Gate Pad 22D9
10 035K 85280 Seal (Chute 1) 22DB
11 035K 85290 Seal (Chute 2) 22DC
12 035K 85320 Seal (Chute 3) 22DD
13 035K 85330 Seal (Chute 4) 22DE
14 035K 85341 Seal (Chute 5) 22DF
15 035K 85380 Seal (B1) 22DG
16 035K 85390 Seal (B2) 22DH
17 035K 85400 Seal (B3) 22DJ
18 – Shaft 22DK
19 899E 01591 Spring (Hook:C,O) 22DL
20 899E 01911 Spring (Hook:C,C) 22DM
