Xerox WorkCentre 5021 Service Documentation

08/2012
4-47
WorkCentre 5021/5019
REP 15.1.1, REP 15.1.2
Repairs and Adjustments
Initial Issue

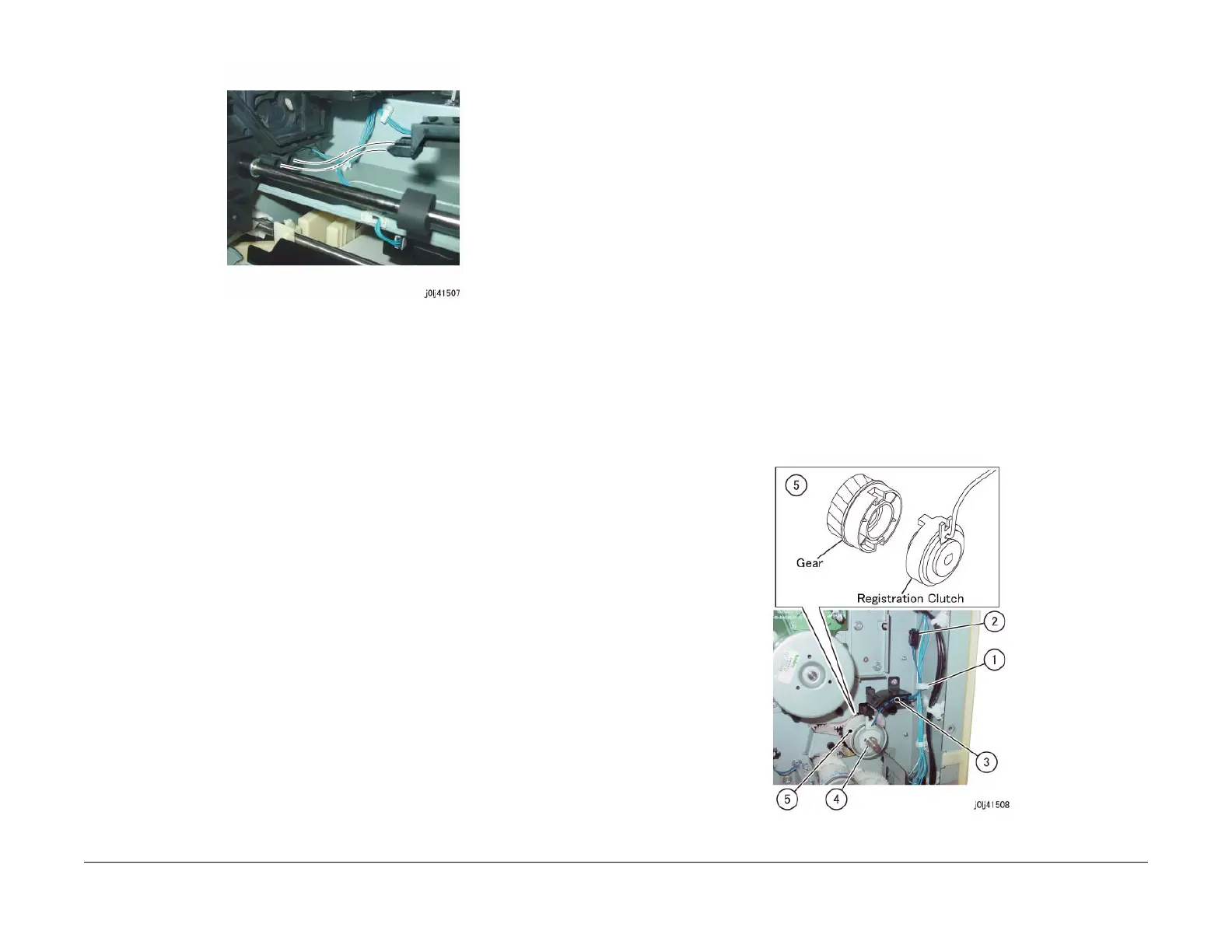

Figure 8 j0lj41507
REP 15.1.2 Registration Roll
Parts List on PL 15.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Drum Cartridge. (REP 8.1.1)
2. Remove the Front Cover. (REP 19.1.1)
3. Remove the MSI. (REP 13.1.1)
4. Remove the L/H Cover. (REP 14.1.1)
5. Remove the Registration Chute. (REP 15.1.1)
6. Remove the Rear Cover. (REP 19.2.1)
7. Remove the Registration Clutch. (Figure 1)
(1) Release the wire harness from the clamp.
(2) Disconnect the connector.
(3) Remove the wire harness from the Harness Guide.
(4) Remove the E-Clip.
(5) Remove the Registration Clutch and the gear.
Figure 1 j0lj41508

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
