Xerox WorkCentre 5021 Service Documentation

08/2012
4-46
WorkCentre 5021/5019
REP 15.1.1
Initial Issue
Repairs and Adjustments

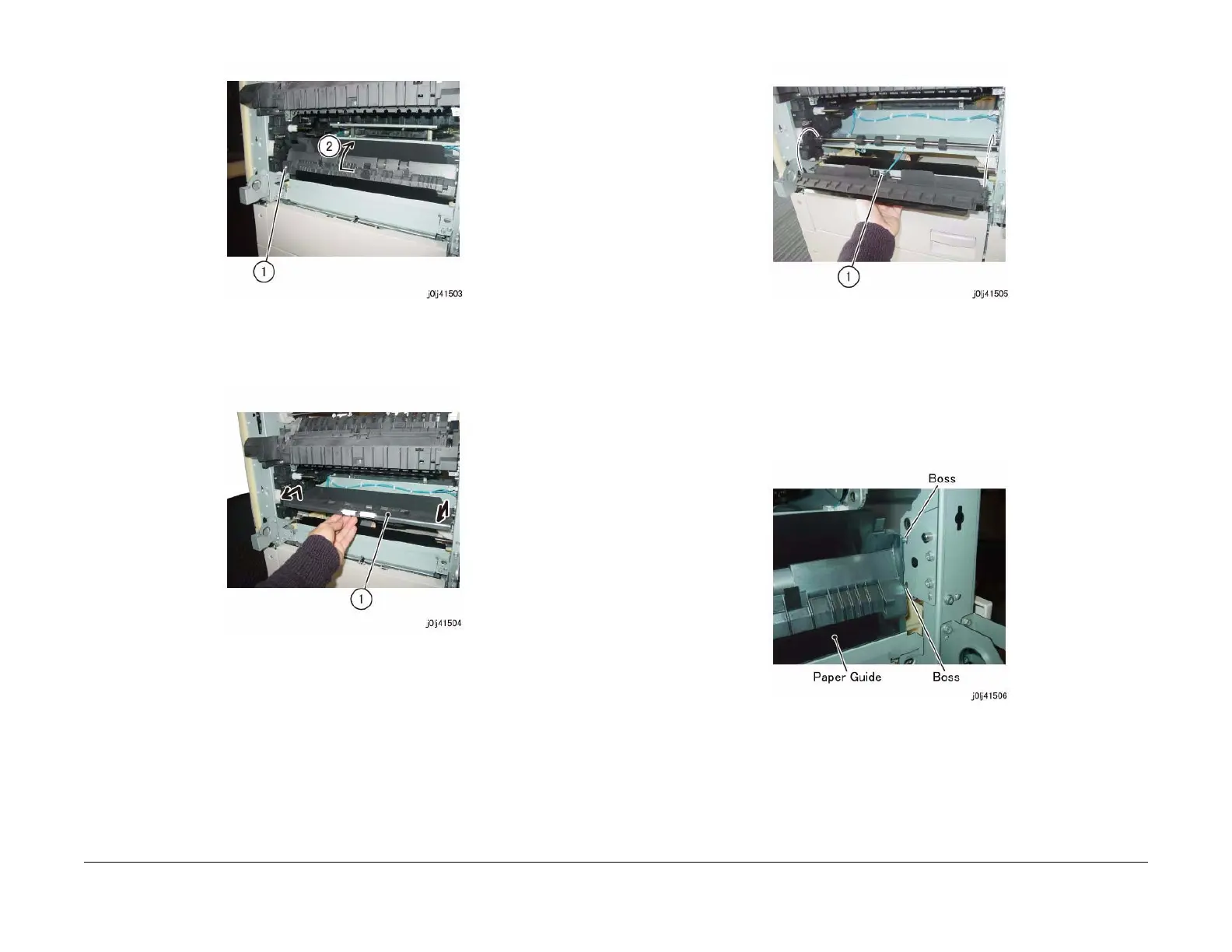

Figure 4 j0lj41503
9. Remove the Registration Chute from the bearing (x2) of the Registration Roll. (Figure 5)
(1) Remove the Registration Chute.
Figure 5 j0lj41504
10. Disconnect the connector and remove the Registration Chute. (Figure 6)
(1) Disconnect the connector and remove the Registration Chute.
Figure 6 j0lj41505
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Registration Chute, insert the boss (x2) of the Registration Chute into
the holes for the boss. (Figure 7)
3. When installing the Registration Chute, install the Registration Chute to the inner side of
the Paper Guide. (Figure 7)
Figure 7 j0lj41506
4. When installing the Drum Cartridge Guide, insert the boss (x2) of the Drum Cartridge
Guide into the holes for the boss. (Figure 8)

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
