Xerox WorkCentre 5021 Service Documentation

08/2012
4-58
WorkCentre 5021/5019
REP 19.1.2, REP 19.2.1
Initial Issue
Repairs and Adjustments

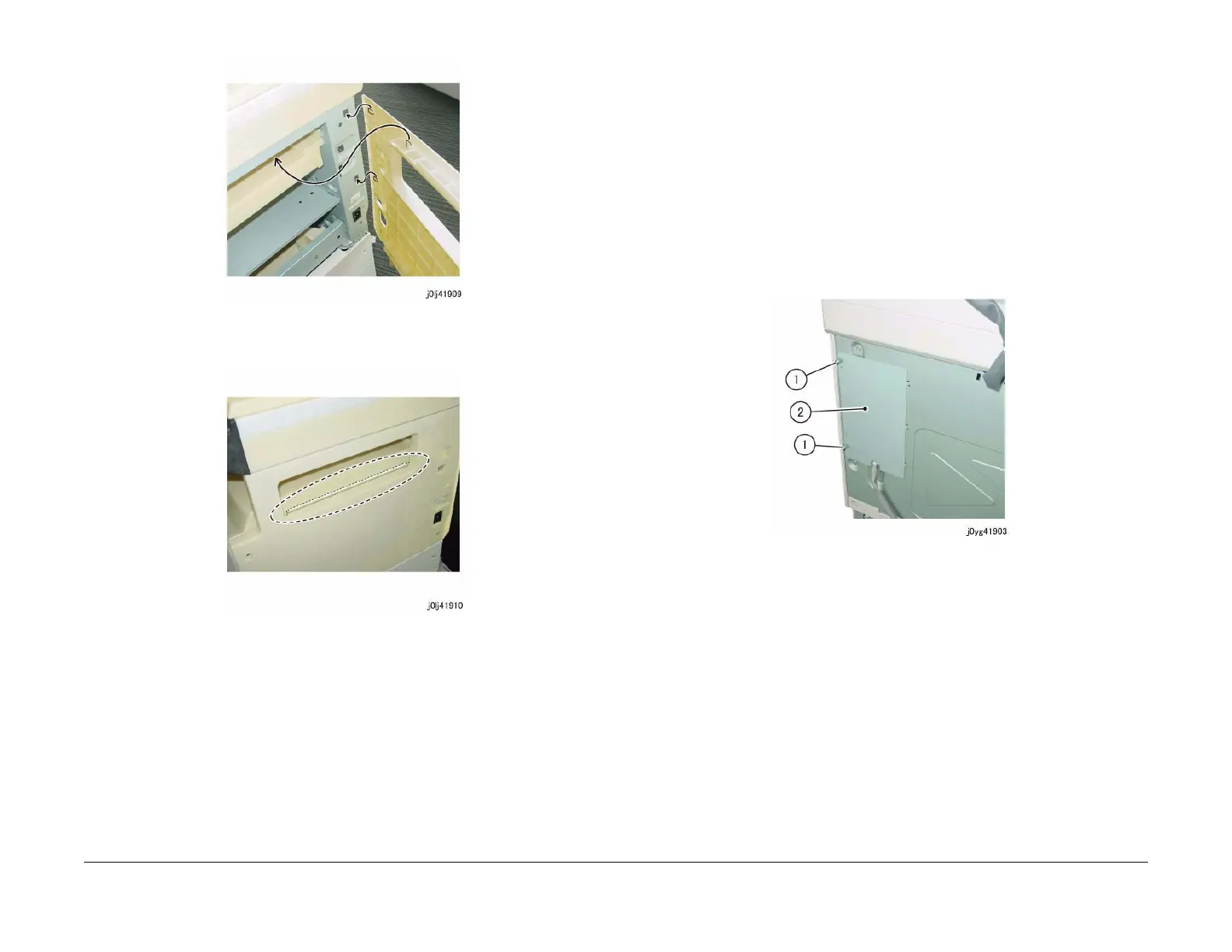

Figure 6 j0lj41909
6. Install the Right Cover as shown in the figure. (Figure 7)
Figure 7 j0lj41910
REP 19.2.1 Rear Cover
Parts List on PL 19.2
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. [Machines with One Tray Module]: Remove the STM Connector Cover. (Figure 1)
(1) Remove the Thumbscrew (x2).
(2) Remove the STM Connector Cover.
Figure 1 j0yg41903
2. [Machines with One Tray Module]: Disconnect the connector. (Figure 2)
(1) Release the Wire Harness from the clamp.
(2) Remove the cable band.
(3) Disconnect the connector.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
