08/2012
5-9
WorkCentre 5021/5019
PL 1.3
Parts List
Initial Issue

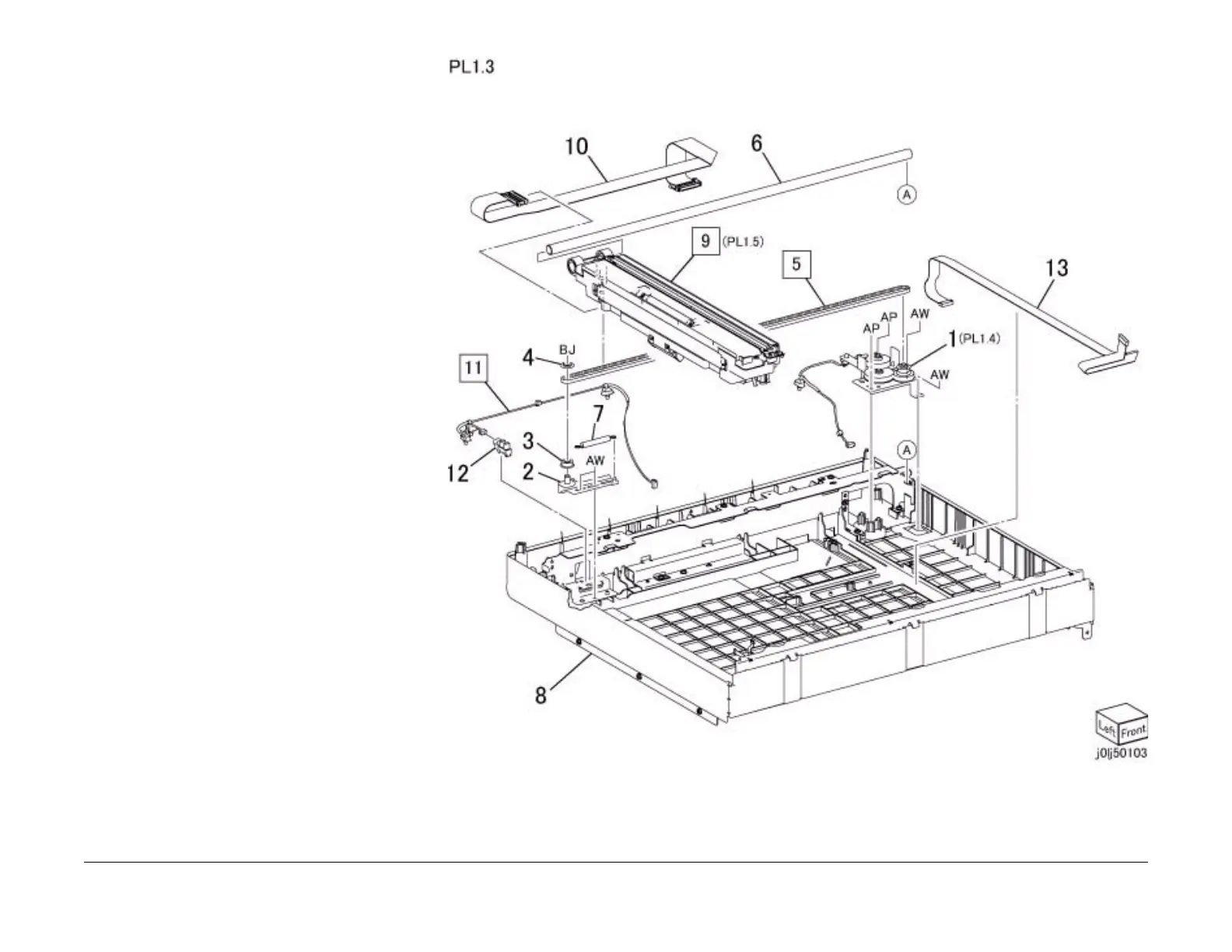

PL 1.3 IIT Base Frame Component
Item Parts No Description A.C.
1 – Carriage Drive and Motor (PL 1.4)
11D1
2 049K 17900 Pulley Bracket 11D2
3 020E 49550 Pulley 11D3
4 005E 33440 Flange 11D4
5 023E 27860 IIT Carriage Belt (REP 1.3.2)11D5
6 – Shaft 11D6
7 809E 58300 Spring 11D7
8 – IIT Base Frame 11D8
9 848K 68874 IIT Carriage (PL 1.5) (REP 1.3.1)
11D9
10 117K 47661 CCD Cable 11DB
11 952K 03781 Sensor Wire Harness (REP 99.1.1)
11DC
12 930W 00123 IIT Registration Sensor 11DD
13 117K 47680 UI Cable 11DE
