Xerox WorkCentre 5021 - PL 9.2 Tray 1 Component

08/2012
5-23
WorkCentre 5021/5019
PL 9.2
Parts List
Initial Issue

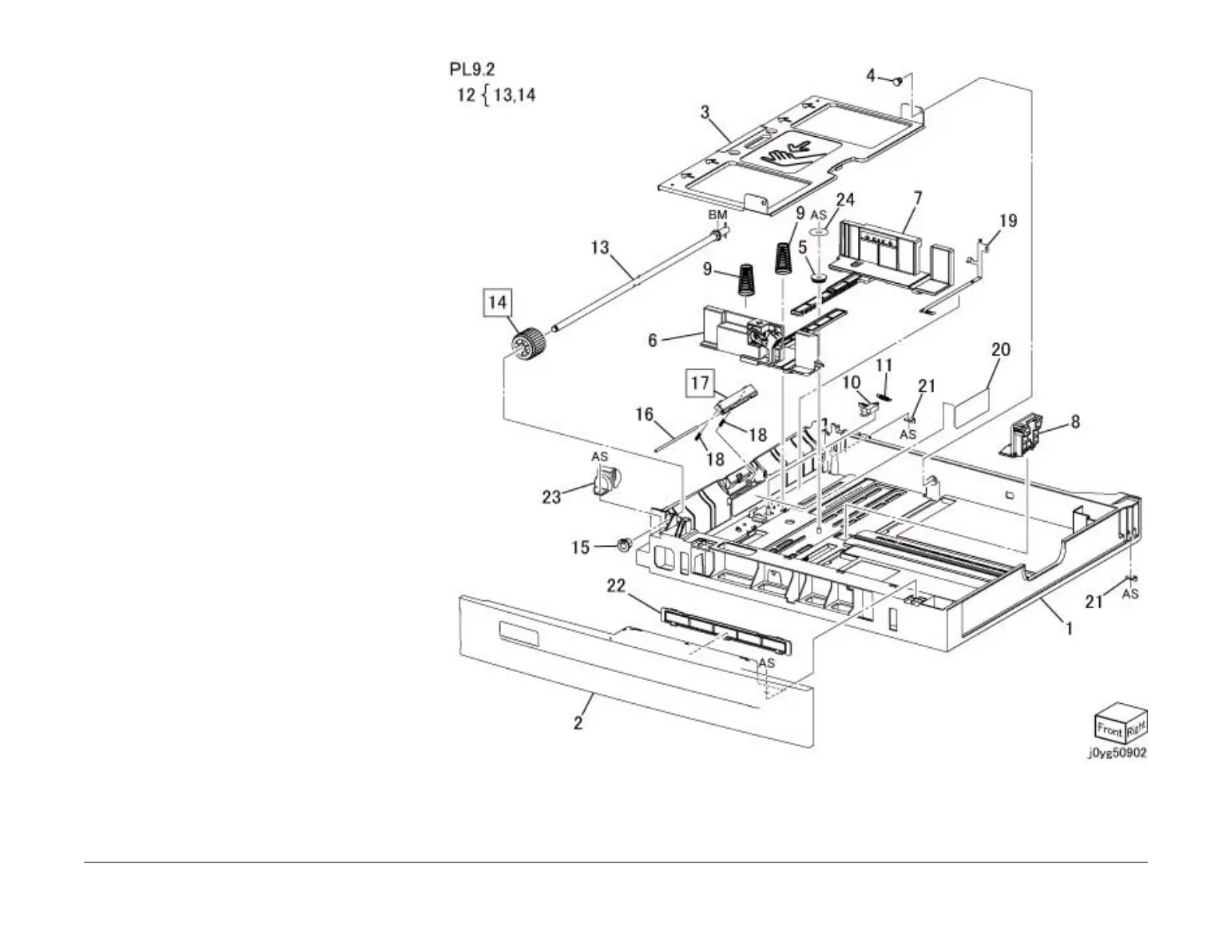

PL 9.2 Tray 1 Component
Item Parts No Description A.C.
1 – Tray Housing 50C1
2 848E 84351 Tray Cover 50C2
3 815K 09820 Bottom Plate 50C3
4 029E 32810 Pivot 50C4
5 807E 02270 Pinion Gear 50C5
6 038K 21331 Side Front Guide 50C6
7 038K 21340 Side Rear Guide 50C7
8 038E 27123 End Guide 50C8
9 809E 54160 Spring 50C9
10 003E 60941 Stopper 50CB
11 809E 54170 Spring 50CC
12 059K 33051 Tray 1Feed Roll and Shaft (Item
13,14)50CD
13 – Shaft (P/O Item 12) 50CE
14 059K 32773 Tray 1Feed Roll (REP 9.2.1)5032
15 013E 25881 Bearing 50CF
16 006E 79021 Retard Shaft 50CG
17 019K 09420 Tray 1Retard Pad (REP 9.2.1)5033
18 809E 27650 Spring 50CH
19 849E 24550 Ground Plate 50CJ
20 – Paper Guide 50CK
21 803E 15701 Stopper 50CL
22 848E 85990 Inner Cover 50CM
23 – Bearing Cover 50CN
24 – Spacer 50CP
