08/2012
4-65
WorkCentre 5021/5019
REP 56.2.2, REP 56.2.3
Repairs and Adjustments
Initial Issue

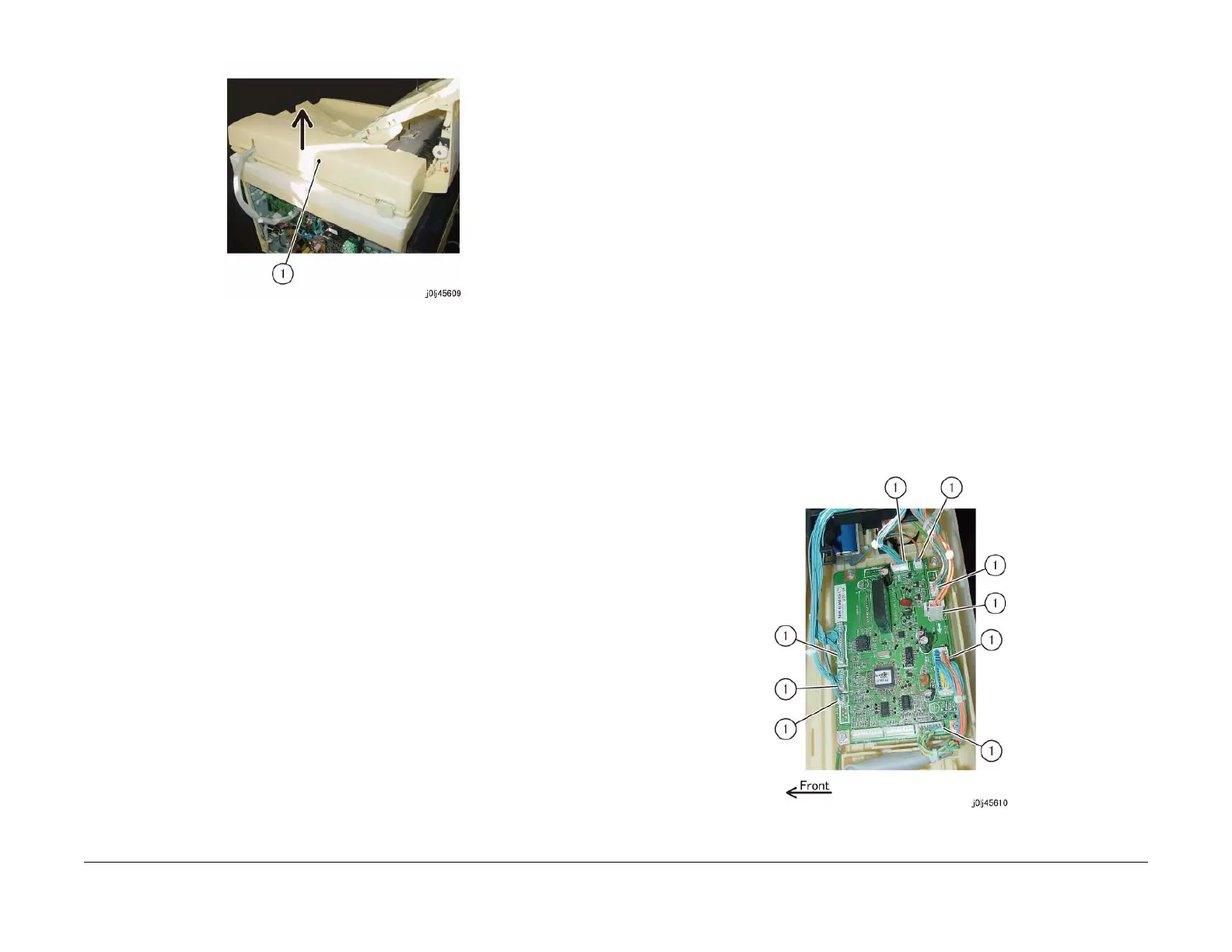

Figure 4 j0lj45609
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.2.3 DADF PWB
Parts List on PL 56.2
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
CAUTION
Static electricity may damage electrical parts.
Static electricity may damage electrical parts. Always wear a wrist band during servicing. If a
wrist band is not available, touch some metallic parts before servicing to discharge the static
electricity.
CAUTION
Do not get yourself hurt by a soldered portion on the back of the PWB.
1. Remove the DADF Rear Cover. (REP 56.2.2)
2. Disconnect the connector. (Figure 1)
(1) Disconnect the connector (x9).
Figure 1 j0lj45610
