Xerox WorkCentre 5021 Service Documentation

08/2012
4-72
WorkCentre 5021/5019
REP 56.6.1
Initial Issue
Repairs and Adjustments
REP 56.6.1 Harness Guide and Wire Harness
Parts List on PL 56.6
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Document Tray. (REP 56.9.1)
4. Disconnect P760 and remove the wire harness from the Harness Guide. (Figure 1)
(1) Disconnect the connector.
(2) Remove the wire harness from the Harness Guide.

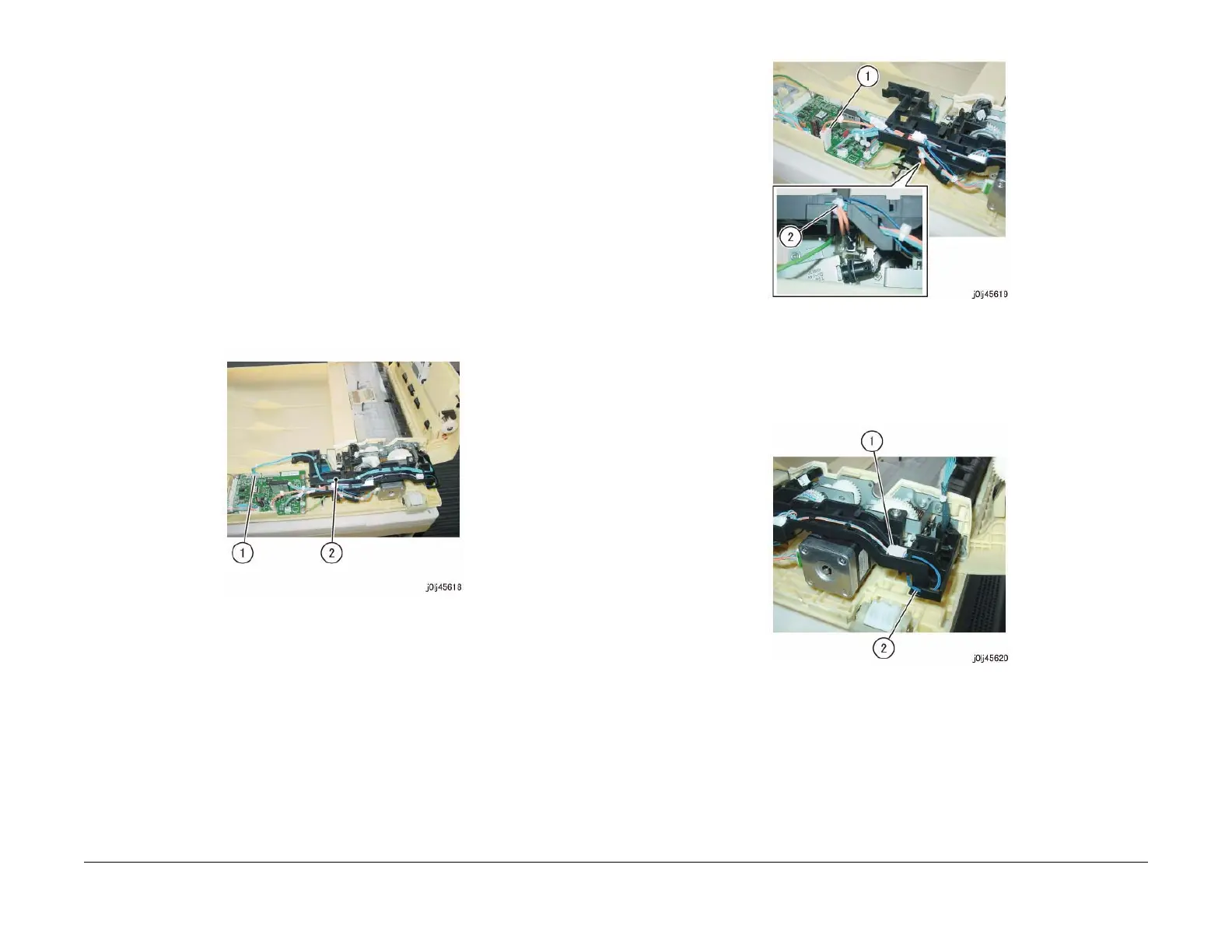

Figure 1 j0lj45618
5. Disconnect P753 and remove the wire harness from the Harness Guide. (Figure 2)
(1) Disconnect the connector.
(2) Remove the wire harness from the Harness Guide.
Figure 2 j0lj45619
6. Disconnect the connector of the DADF Takeaway Clutch and remove the wire harness
from the Harness Guide. (Figure 3)
(1) Disconnect the connector.
(2) Remove the wire harness from the Harness Guide.
Figure 3 j0lj45620
7. Disconnect the DADF PWB connectors. (Figure 4)
(1) Disconnect the connector (x2).
