Xerox WorkCentre 5021 Service Documentation

08/2012
4-71
WorkCentre 5021/5019
REP 56.5.1
Repairs and Adjustments
Initial Issue

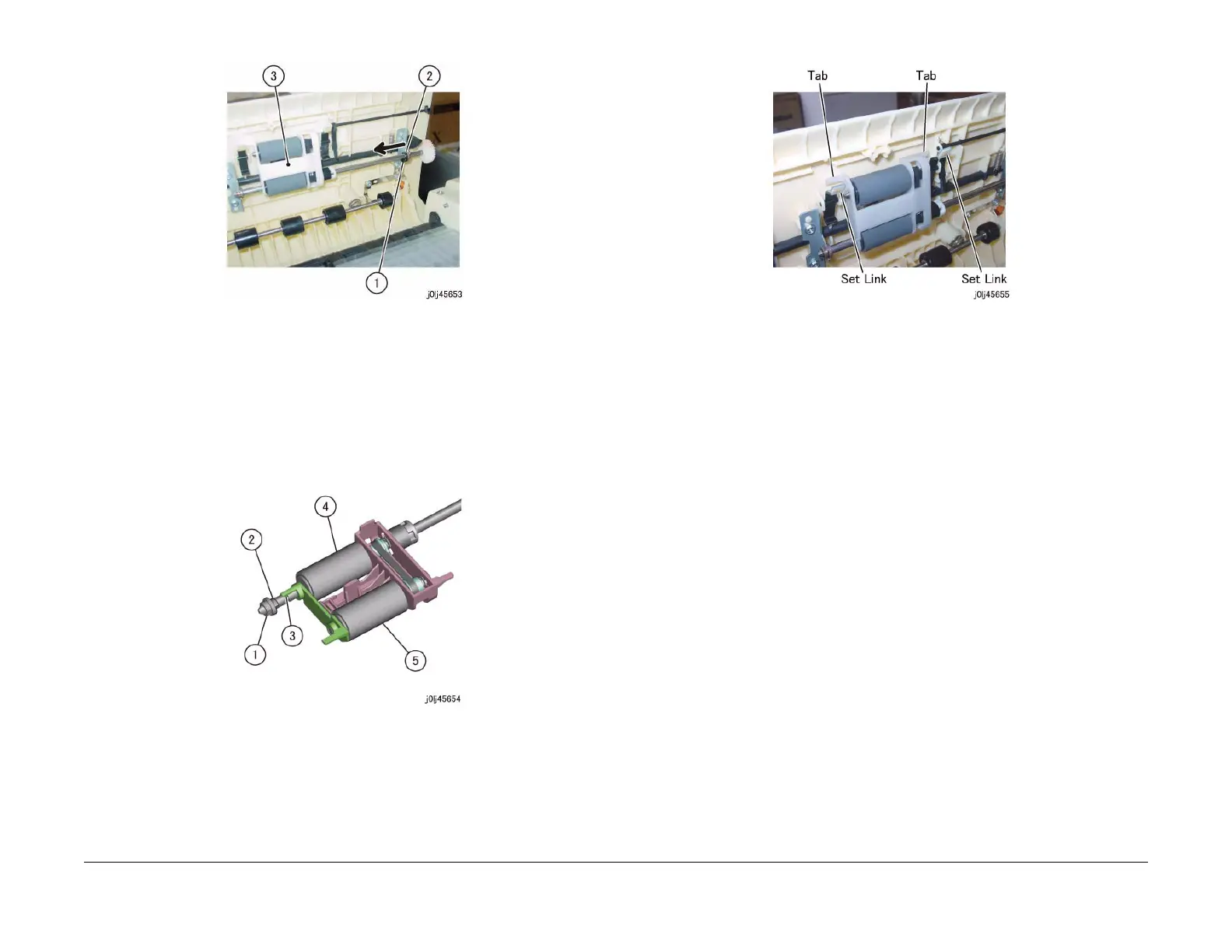

Figure 2 j0lj45653
4. Remove the Feed Roll and the Nudger Roll. (Figure 3)
(1) Remove the Bearing.
(2) Remove the KL-Clip.
(3) Release the hook to remove the housing.
(4) Remove the Feed Roll.
(5) Remove the Nudger Roll.
Figure 3 j0lj45654
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Feed Roll and the Nudger Roll, install them such that they are rotating
in the clockwise direction.
3. When installing the Feed Roll Nudger Roll Assembly, install it such that the Tab (x2) of the
Feed Roll Nudger Roll Assembly are at the inner side of the Set Link. (Figure 4)
Figure 4 j0lj45655
4. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
'Chain Link : 955-806'
Refer to [6.4.2.9 HFSI Counter Read/Clear].

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
