08/2012
7-33
WorkCentre 5021/5019
CH1.1
Wiring Data
Initial Issue

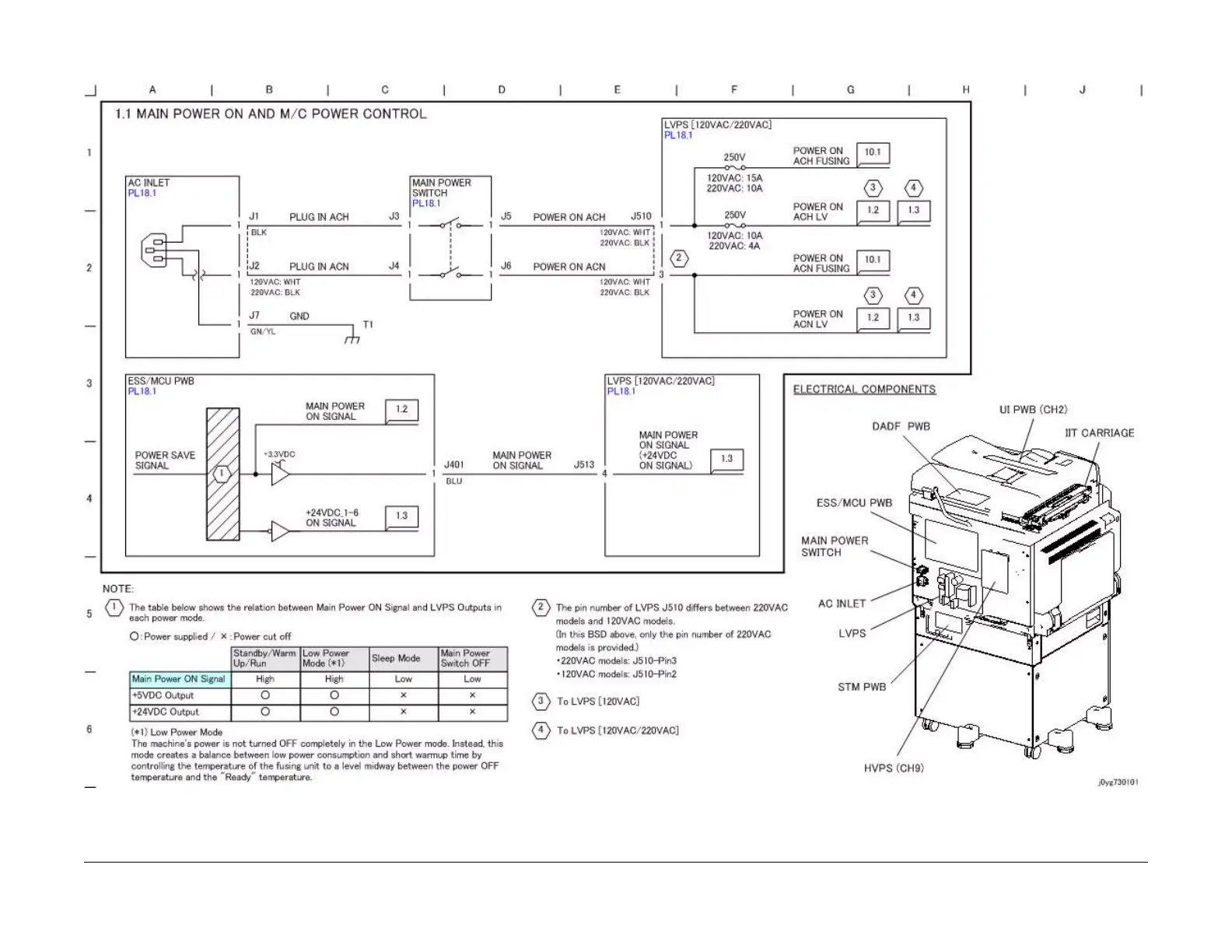

CH1.1 Main Power On and M/C Power Control
Figure 1 j0yg730101
