Xerox WorkCentre 5021 Service Documentation

08/2012
4-67
WorkCentre 5021/5019
REP 56.2.4, REP 56.2.5
Repairs and Adjustments
Initial Issue

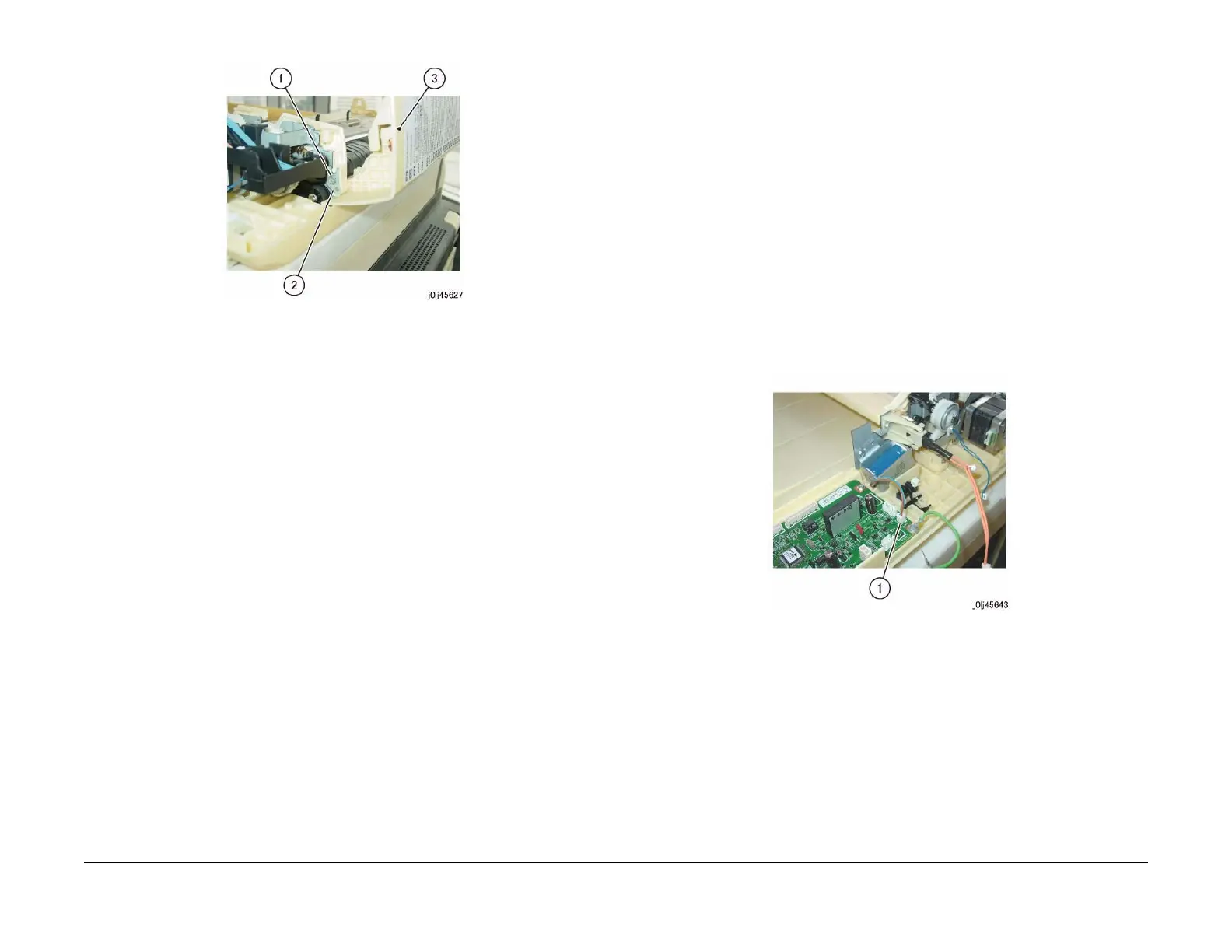

Figure 2 j0lj45627
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.2.5 DADF Feeder Assembly
Parts List on PL 56.2
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Document Tray. (REP 56.9.1)
4. Remove the Harness Guide and the wire harness. (REP 56.6.1)
5. Remove the Upper Feeder. (REP 56.2.4)
6. Disconnect the connector of the Exit Nip Release Solenoid. (Figure 1)
(1) Disconnect the connector.
Figure 1 j0lj45643
7. Remove the screws that secure the DADF Feeder Assembly at the rear. (Figure 2)
(1) Remove the Tapping Screw (x3).

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
