Xerox WorkCentre 5021 - Page 170

08/2012
4-68
WorkCentre 5021/5019
REP 56.2.5
Initial Issue
Repairs and Adjustments

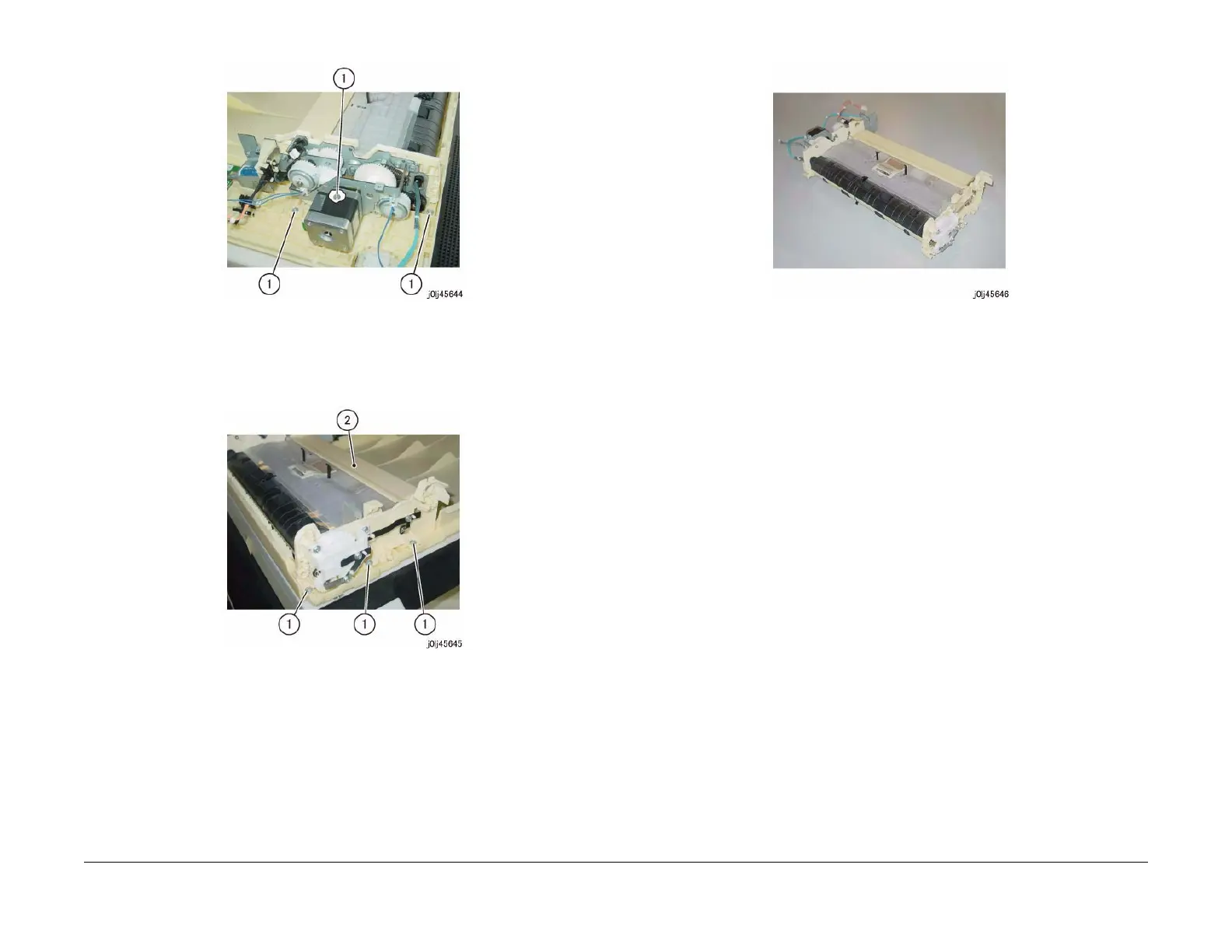

Figure 2 j0lj45644
8. Remove the DADF Feeder Assembly. (Figure 3)
(1) Remove the Tapping Screw (x3).
(2) Remove the DADF Feeder Assembly.
Figure 3 j0lj45645
Reference: This shows the removed DADF Feeder Assembly. (Figure 4)
Figure 4 j0lj45646
Replacement
1. To install, carry out the removal steps in reverse order.
