Xerox WorkCentre 5021 Service Documentation

08/2012
4-10
WorkCentre 5021/5019
REP 1.5.1
Initial Issue
Repairs and Adjustments
REP 1.5.1 LED Lamp PWB
Parts List on PL 1.5
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Platen Cover or the DADF. (REP 56.1.1)
2. Remove the IIT Top Cover. (REP 1.2.1)

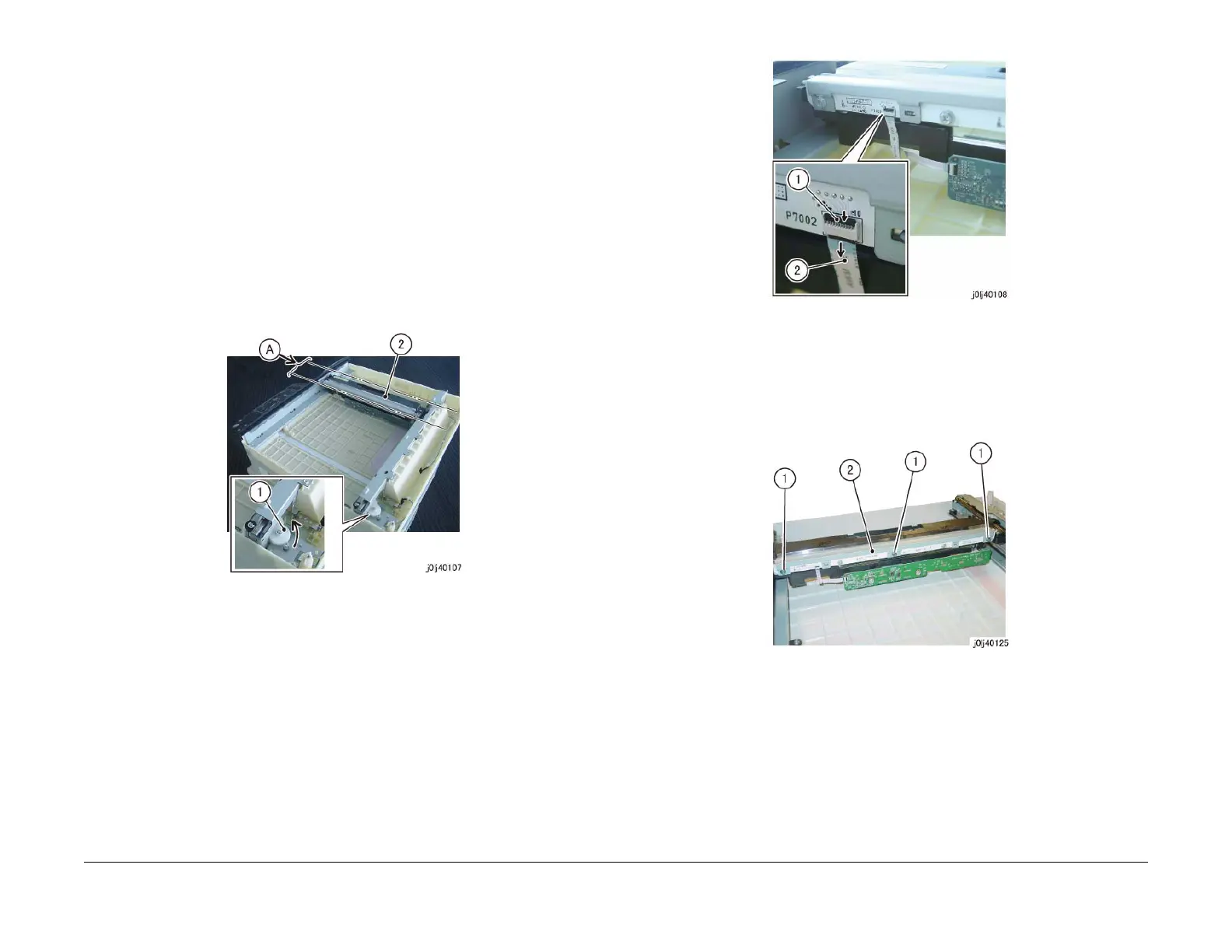

3. Move the IIT Carriage to the opening of the Frame. (Figure 1)
(1) Rotate the gear in the direction of the arrow.
(2) Move the IIT Carriage to the opening (Arrow A) of the Frame.
Figure 1 j0lj40107
4. Disconnect the connector of the LED Housing. (Figure 2)
(1) Lower the block of the Connector Housing in the direction of the arrow.
(2) Pull out and remove the LED Cable in the direction of the arrow.
Figure 2 j0lj40108
5. Remove the LED Bracket. (Figure 3)
(1) Remove the screw (short: x3).
(2) Remove the LED Bracket.
Figure 3 j0lj40125
6. Remove the LED Lamp PWB. (Figure 4)
(1) Remove the screw (short: x2).
(2) Remove the LED Lamp PWB.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
