Xerox WorkCentre 5021 Service Documentation

08/2012
4-11
WorkCentre 5021/5019
REP 1.5.1
Repairs and Adjustments
Initial Issue

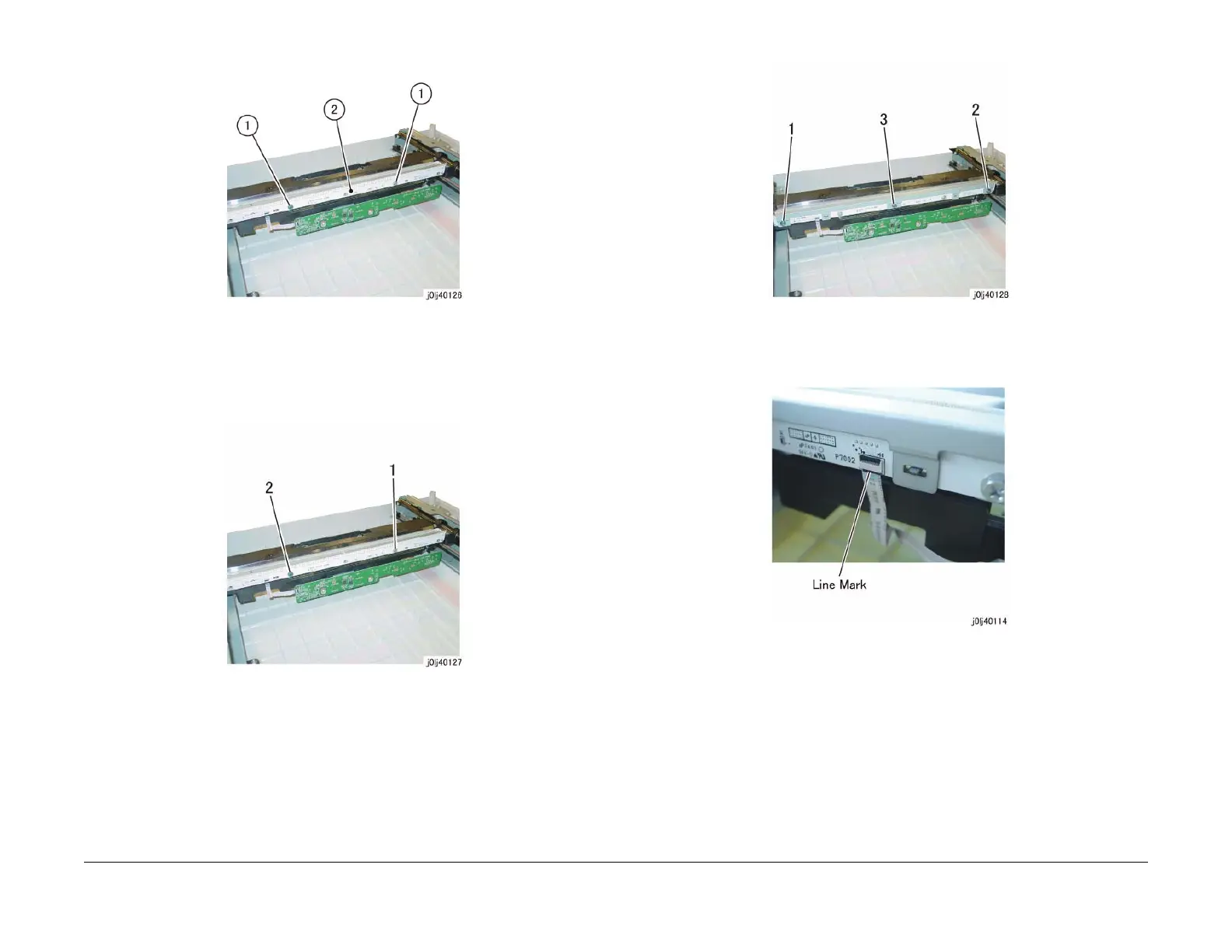

Figure 4 j0lj40126
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the LEB Lamp PWB, tighten the screw of the LED Lamp PWB in the order
of 1 then 2. (Figure 5)
Figure 5 j0lj40127
3. When installing the LEB Bracket, tighten the screw of the LED Bracket in the order of 1 to
3.
(Figure 6)
Figure 6 j0lj40128
4. When connecting the connector of the LED Housing, insert it into the Connector Housing
until the Line Mark of the LED Cable is at the position indicated in the figure. (Figure 7)
Figure 7 j0lj40114
5. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
'Chain Link : 956-804'
Refer to [6.4.2.9 HFSI Counter Read/Clear].

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
