Xerox WorkCentre 5021 Service Documentation

08/2012
4-36
WorkCentre 5021/5019
REP 10.6.2
Initial Issue
Repairs and Adjustments
REP 10.6.2 STM Takeaway Motor
Parts List on PL 10.6
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
CAUTION
Static electricity may damage electrical parts.
Static electricity may damage electrical parts. Always wear a wrist band during servicing. If a
wrist band is not available, touch some metallic parts before servicing to discharge the static
electricity.

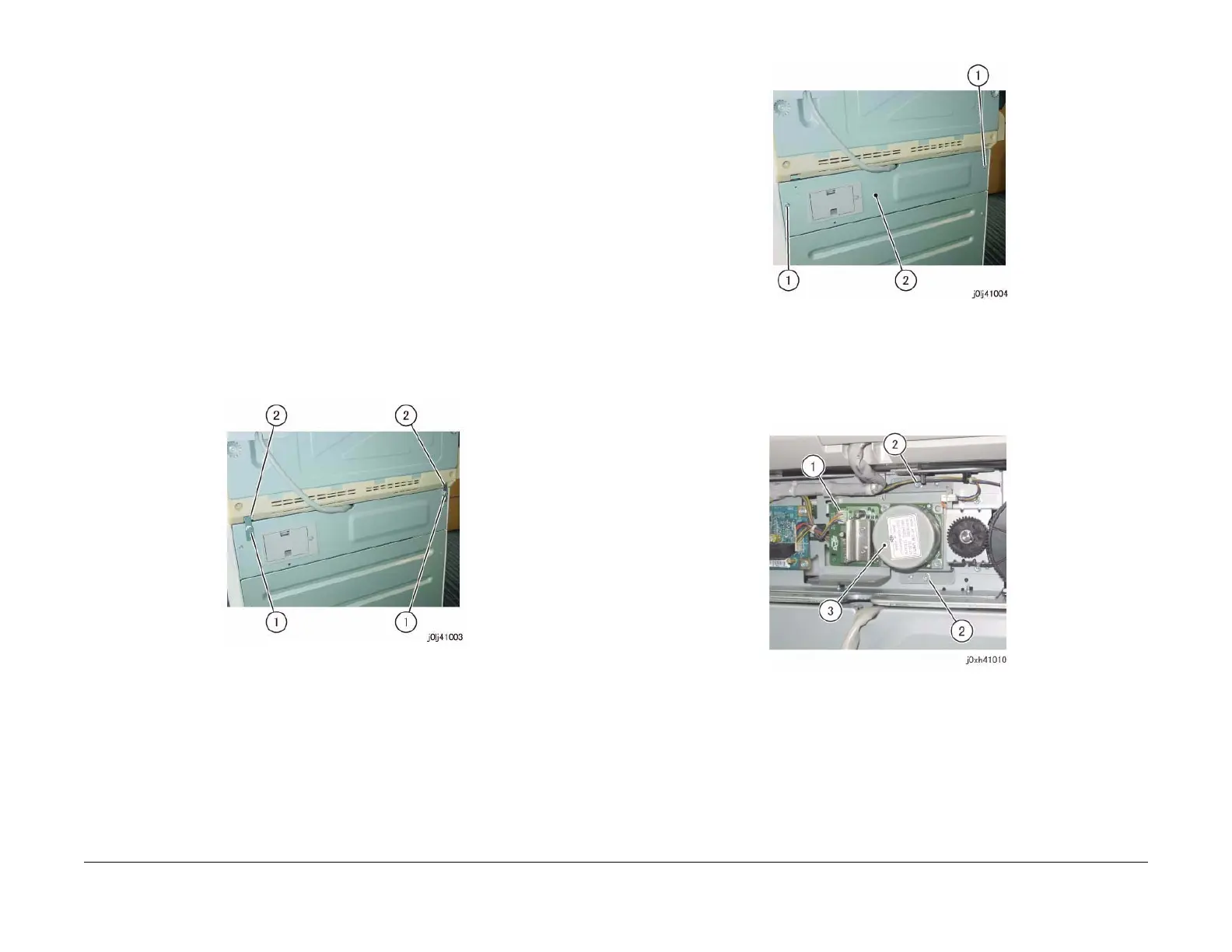

1. Remove the Docking Bracket (x2). (Figure 1)
(1) Remove the Docking Screw (x2).
(2) Remove the Docking Bracket (x2).
Figure 1 j0lj41003
2. Remove the Rear Cover of the One Tray Module. (Figure 2)
(1) Remove the screw (x2).
(2) Remove the Rear Cover.
Figure 2 j0lj41004
3. Remove the STM Takeaway Motor. (Figure 3)
(1) Disconnect the connector.
(2) Remove the screw (x2).
(3) Remove the STM Takeaway Motor.
Figure 3 j0xh41010
Replacement
1. To install, carry out the removal steps in reverse order.

Xerox WorkCentre 5021 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Copy Speed	Up to 20 cpm
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 20, 000 pages
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Maximum Paper Size	A3
Duplex Printing	Manual
Memory	128 MB
Fax Transmission Speed	33.6 Kbps (optional)
Operating System Compatibility	Windows, Mac
Print Resolution	600 x 600 dpi
